Patriot SPZ-52

SPZ-52 SPZ Roll-over Protection Structure Diagram

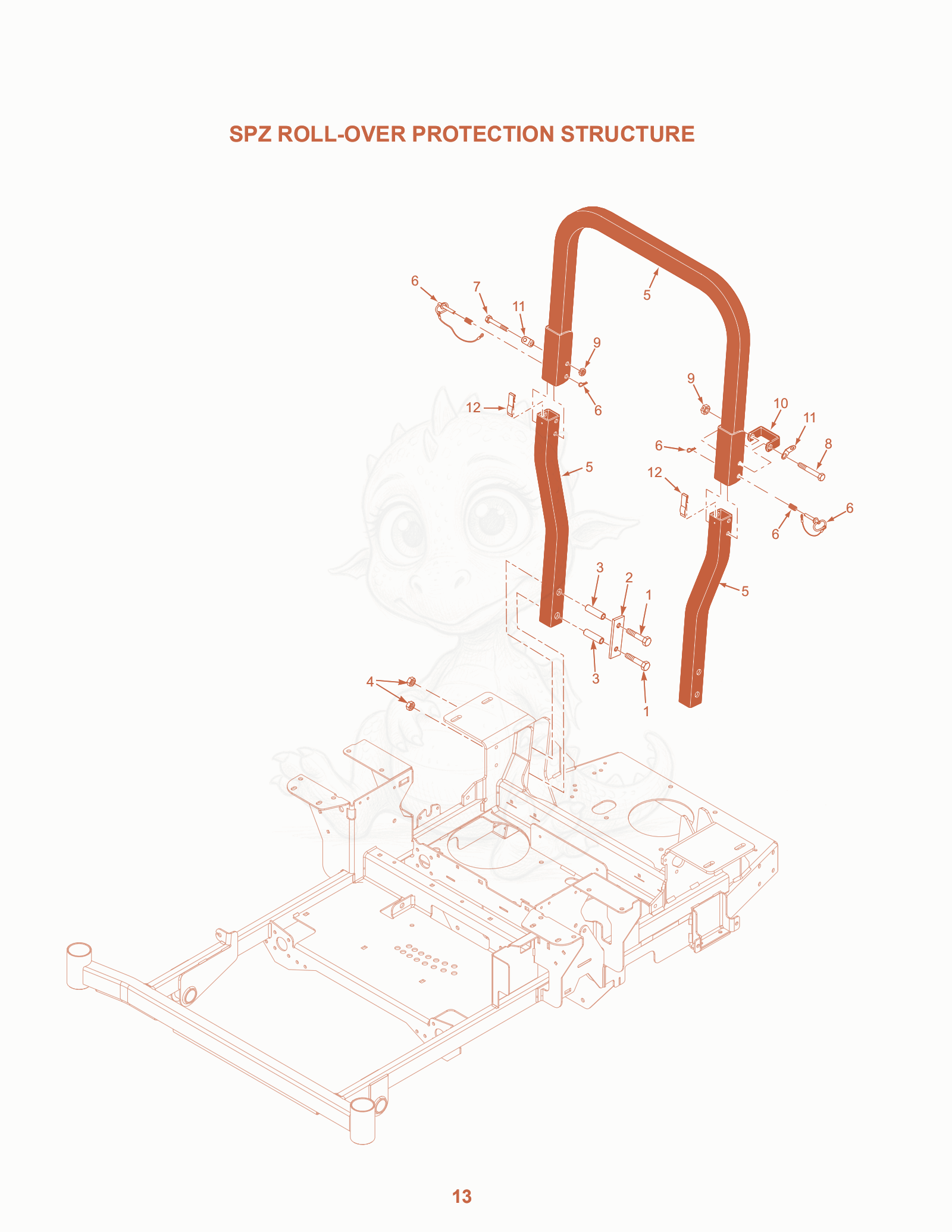

Exploded parts diagram of the SPZ Roll-over Protection Structure of a Scag SPZ-52, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S04001-197
    $1.93
    Scag 04001-197 - HHCS, 1/2-13 X 3.00 GR8
  • 2S428961
    $6.60
    ROPS MTG PLATEUnknown
  • 2S428961-TNot stocked
    ROPS Mounting Plate (Tan)
  • 3S43743
    $6.05
    BUSHING, SFZ ROPS
  • 4S04117-04
    $0.99
    Scag 04117-04 - LKNUT, 1/2-13 FLG HH ELAS STOP
  • 5S463432
    $470.23
    ROPS ASSY, FOLDABLE- SPZUnknown
  • 5S463796Not stocked
    ROPS (Pink)
  • 5S463908Not stocked
    ROPS (Tan)
  • 6S484168
    $26.85
    PIN ASSY, ROPS HINGE
  • 7S04001-90
    $2.81
    Scag 04001-90 - BOLT, HEX HEAD, 1/2-13 X 3-1/4
  • 8S04001-145
    $2.30
    BOLT, HEX HEAD 1/2-13 X 3-1/2"
  • 9S04021-19
    $0.40
    LOCKNUT, HEX 1/2-13 CENTER LOCK
  • 10S485722
    $12.93
    STOP, ROPS -SPZ
  • 11S484169
    $3.32
    CLIP, ROPS
  • 12S484167
    $4.30
    SPRING, ROPS ANTI-RATTLE
