V-Ride SVR-36

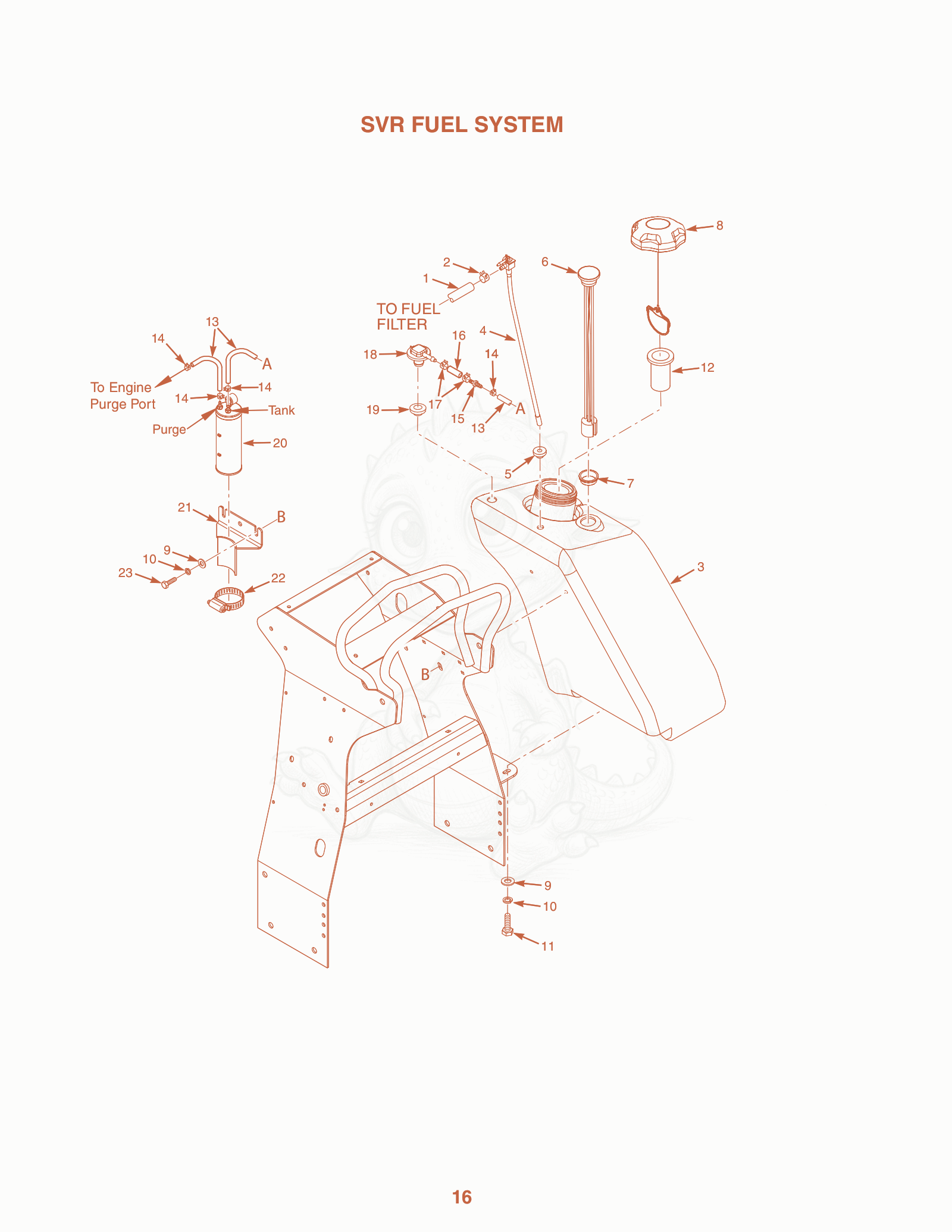

SVR-36 SVR Fuel System Diagram

Exploded parts diagram of the SVR Fuel System of a Scag SVR-36, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S483617
    $0.46
    HOSE, NON-PERM FUEL 1/4" (PER INCH)
  • 2S48059-01
    $0.57
    Scag 48059-01 - FUEL HOSE CLAMP DET#1
  • 3S462376
    $473.85
    Scag 462376 - FUEL TANK ASSY, LP - SVR-36/48
  • 3S462377
    $666.63
    FUEL TANK ASSY, LP - SVR-52/61
  • 4S483896
    $48.58
    Scag 483896 - VALVE, FUEL SHUT-OFF
  • 5S482571
    $11.70
    BUSHING, .56 DIA VITON
  • 6S484246
    $84.34
    Scag 484246 - FUEL GAUGE ASSY, 16.50
  • 7S484242
    $20.86
    SEAL, FUEL GAUGE
  • 8S484286
    $51.58
    FUEL CAP, TETHERED
  • 9S04040-15
    $0.07
    FLATWASHER, 5/16"
  • 10S04030-03
    $0.06
    Scag 04030-03 - 5/16LKWHR.586X.317X.078THK(A
  • 11S04001-08
    $0.25
    Scag 04001-08 - BOLT, HEX HEAD, 5/16-18 X 3/4"
  • 12S484279-01
    $3.98
    Scag 484279-01 - TUBE, FUEL TANK INSERT - 4"
  • 13S484345
    $0.19
    Scag 484345 - HOSE, 3/16" VAPOR RECOVERY
  • 14S48059-05
    $3.98
    Scag 48059-05 - CLAMP, VAPOR RECOVERY 3/16 HOSE
  • 15S484343-01
    $25.22
    Scag 484343-01 - FITTING, MENDER 1/4X3/16 W/.020 HOLE
  • 16S484347
    $0.35
    HOSE, 1/4" VAPOR RECOVERY
  • 17S48059-02
    $0.32
    Scag 48059-02 - CLAMP, FUEL HOSE - 7/32 ID
  • 18S484333
    $13.85
    REMOTE VENT W/ NO VALVE
  • 19S484285Not stocked
    Grommet, Viton
  • 20S484287
    $90.61
    CARBON CANNISTER, SW/SWZ
  • 20S484342
    $97.78
    Scag 484342 - CARBON CANISTER, 550 CC
  • 21S452225
    $44.09
    Scag 452225 - CANISTER MTG WELDMENT, SVR
  • 22S48136-17
    $6.93
    CLAMP, 3.50 MAX DIA
  • 23S04001-09
    $0.40
    HHCS, 5/16-18 X 1.00 ZINC
