V-Ride SVR-48V

SVR-48V 61V Cutter Deck Diagram

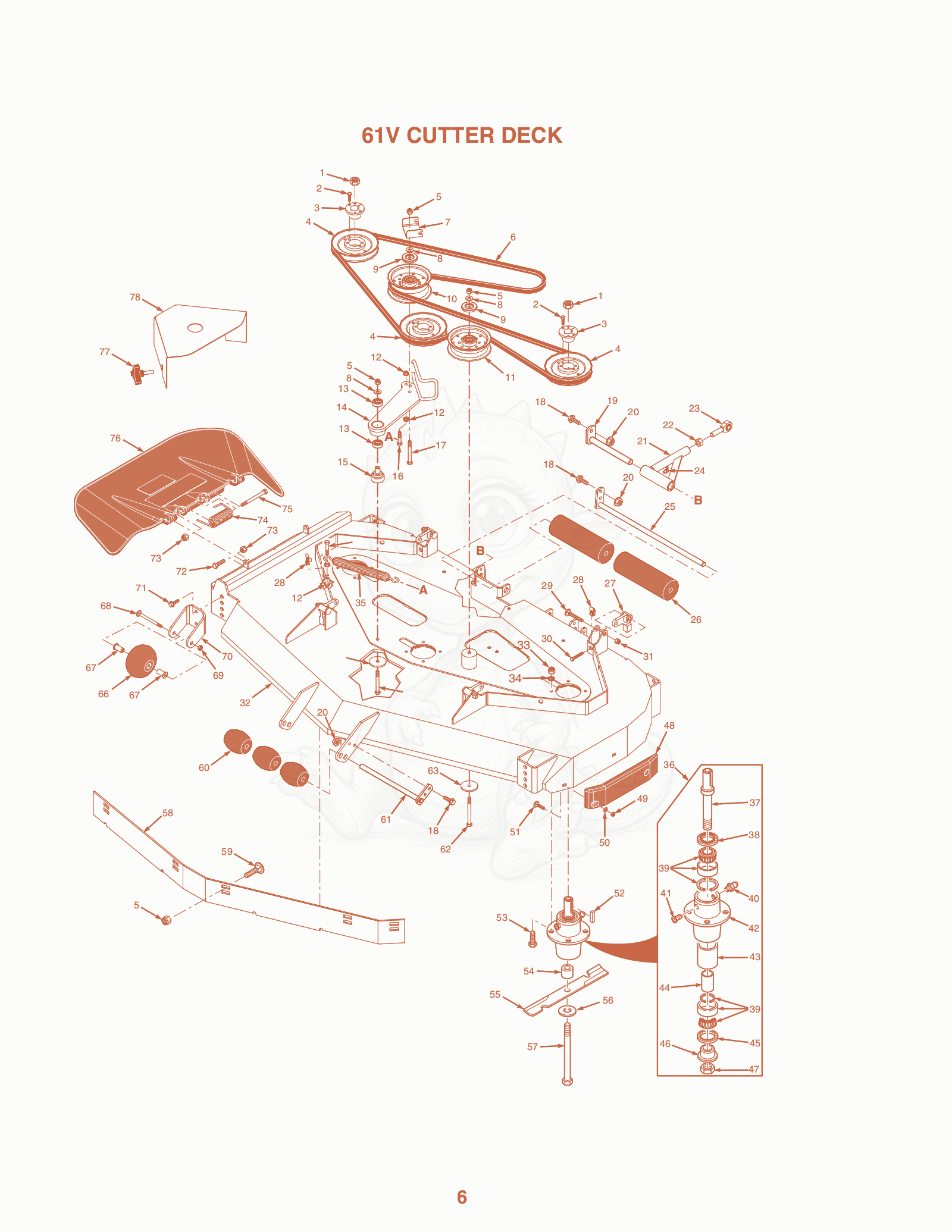

Exploded parts diagram of the 61V Cutter Deck of a Scag SVR-48V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S04020-09
    $0.63
    HEX NUT, 5/8-11
  • 2S04001-172
    $0.18
    HH BOLT, 1/4-20 X 1.00 GR 8 BLK
  • 3S48926
    $29.77
    TAPERED HUB
  • 4S483286
    $36.35
    Scag 483286 - PULLEY 6.33 OD - TAPER BORE
  • 5S04021-09
    $0.20
    3/8-16 ELASTIC HEX LKNUT
  • 6S484197
    $97.27
    Scag 484197 - BELT, SMVR-61V
  • 7S424615
    $4.84
    Scag 424615 - BRACKET, BELT GUIDE
  • 8S04043-04
    $0.70
    Scag 04043-04 - FLATWASHER, 3/8"
  • 9S424367
    $1.95
    DUST SHIELD
  • 10S483210Not stocked
    Pulley, 5" Idler
  • 11S483215Not stocked
    Pulley, 5" Idler
  • 12S04019-04
    $0.28
    Scag 04019-04 - NUT, 3/8-16 SERR FLG HH ZINC
  • 13S48224
    $12.51
    BALL BEARINGS-NEUTRAL RET.
  • 14S462333
    $84.95
    Scag 462333 - IDLER ARM ASSY, SMVR-61V
  • 15S43681Not stocked
    Pivot, Idler
  • 16S04001-136
    $0.46
    Scag 04001-136 - BOLT, HEX HEAD 3/8-16 X 1-1/2"
  • 17S04001-62
    $1.13
    Scag 04001-62 - BOLT, HEX HEAD 3/8-16 X 3-1/4"
  • 18S04001-09
    $0.40
    HHCS, 5/16-18 X 1.00 ZINC
  • 19S451724
    $34.29
    SHAFT WLMT, PUSHARM MTG
  • 20S04019-03
    $0.15
    Scag 04019-03 - NUT, 5/16-18 SERR FLG HH ZINC
  • 21S462323
    $116.77
    Scag 462323 - PUSHARM ASSY, LH SVR
  • 21S462324
    $116.77
    Scag 462324 - PUSHARM ASSY, RH SVR
  • 22S04020-16
    $0.70
    Scag 04020-16 - NUT, 5/8-18 UNF ZINC
  • 23S48763
    $55.86
    Scag 48763 - ROD END, 5/8 MALE RH THD
  • 24S48114-08
    $3.84
    GRSE FIT'G, 90 DEG
  • 25S452076Not stocked
    Shaft Weldment
  • 26S483997Not stocked
    Guide Roller
  • 27S483361
    $20.94
    Scag 483361 - LEVER, DECK LEVEL
  • 28S04110-03
    $2.09
    U-NUT, 3/8-16
  • 29S04003-42
    $2.27
    CARR BOLT, 7/16-14 X 2.25
  • 30S04107-04
    $1.30
    Scag 04107-04 - HHCS, 3/8-16 X 2.00 SPECIAL LOCK
  • 31S04021-11
    $0.26
    Scag 04021-11 - HEX NUT, ELASTIC STOP, 7/16-14
  • 32S462334
    $1,775.07
    Scag 462334 - CUTTER DECK W/DECALS, SMVR-61V
  • 33S04021-22
    $0.26
    Scag 04021-22 - LOCKNUT, 5/16-18 ELAS STOP - GR 8
  • 34S04030-03
    $0.06
    Scag 04030-03 - 5/16LKWHR.586X.317X.078THK(A
  • 35S484020
    $61.35
    SPRING, CUTTER DECK - SMVR
  • 36S461663
    $248.59
    SPINDLE ASSY
  • 37S43589
    $56.20
    Scag 43589 - SHAFT, CUTTER SPINDLE
  • 38S481024
    $4.36
    SEAL,2.00 OD X 1.50 BORE
  • 39S481022
    $57.56
    Scag 481022 Tapered Bearing Set
  • 40S48114-04
    $0.95
    Scag 48114-04 - GREASE FITTING 1/4-28 SELF-TAP
  • 41S48677
    $1.41
    Scag 48677 - RELIEF FITTING
  • 42S43644
    $56.87
    Scag 43644 - SPINDLE HOUSING
  • 43S43312
    $18.38
    Scag 43312 SW Outside Spacer
  • 44S43296
    $7.81
    SPACER, INSIDE
  • 45S481025
    $4.36
    SEAL,2.00 OD X 1.625 BORE
  • 46S43297
    $9.16
    Scag 43297 - SPINDLE BUSHING, BOTTOM
  • 47S481035
    $7.32
    NUT,1.06-18 THD
  • 48S483176
    $32.55
    Scag 483176 - PAD, DECK WEAR - 48A/52A/61A
  • 49S04021-04
    $0.26
    Scag 04021-04 - NUT, 5/16-18 CENTER LOCK
  • 50S04040-04
    $0.06
    Scag 04040-04 - FLATWASHER, 5/16
  • 51S04003-12
    $0.36
    Scag 04003-12 - CARRIAGE BOLT, 5/16-18 X 3/4"
  • 52S04063-08
    $1.08
    KEY BAR STOCK #C1018 1/4X1/4X2
  • 53S04001-176
    $0.47
    Scag 04001-176 - HH BOLT, 5/16-18 X 1.75 GR 8 BLK
  • 54S43590
    $16.60
    Scag 43590 - SPACER, SPINDLE BOTTOM
  • 55S482881
    $27.32
    Scag 482881 SCZ Cuttler Blade 21.0"
  • 56S04043-06
    $1.72
    WASHER, 5/8 HARDENED
  • 57S04001-41
    $11.79
    5/8-11X9-1/2 HH CP SCR GRD5
  • 58S424841
    $115.38
    BAFFLE, FLG - 61V
  • 59S04003-23
    $1.31
    Scag 04003-23 - CARRIAGE BOLT, 3/8-16 X 1.0
  • 60S482295Not stocked
    Wheel, Anti-Scalp
  • 61S45944
    $21.04
    Scag 45944 - ROLLER SHAFT
  • 62S04001-47
    $3.07
    Scag 04001-47 - BOLT, HEX HEAD 3/8-16 X 5.00
  • 63S04041-38
    $3.17
    FLATWASHER, 3/8 - .406 X 2.25 X .188
  • 64S04001-62
    $1.13
    Scag 04001-62 - BOLT, HEX HEAD 3/8-16 X 3-1/4"
  • 65S04001-136
    $0.46
    Scag 04001-136 - BOLT, HEX HEAD 3/8-16 X 1-1/2"
  • 66S481632
    $21.03
    Scag 481632 - ANTI-SCALP WHEEL
  • 67S48100-15
    $4.69
    Scag 48100-15 - BUSHING, .376 I.D. OILITE
  • 68S04003-26
    $1.76
    Scag 04003-26 - CARRIAGE BOLT, 3/8-16 X 4.00
  • 69S04021-05
    $0.26
    Scag 04021-05 - LKNUT, 3/8-16 ELAS STOP
  • 70S422478
    $27.10
    ANTI-SCALP WHEEL BRACKET
  • 71S04017-27
    $1.21
    Scag 04017-27 - CPSCR,3/8-16X1"SERR FLG HH
  • 72S04001-12
    $0.46
    BOLT, HEX HEAD, 5/16-18 X 1.75
  • 73S04021-10
    $0.10
    Scag 04021-10 - 5/16-18 LOCKNUT ELASTIC TYPE
  • 74S482245
    $10.47
    Scag 482245 - SPRING, DISCHARGE CHUTE
  • 75S04001-154
    $2.54
    Scag 04001-154 - HH BOLT, 5/16-18 X 4.75 ZINC
  • 76S461846
    $64.28
    DISCH CHUTE W/ TAG, 61V
  • 77S481625-01
    $2.57
    WING NUT, 3/8-16
  • 78S425474
    $71.38
    BELT COVER, SMVR-61V
