Tiger Cat STC48V-22FS-LE

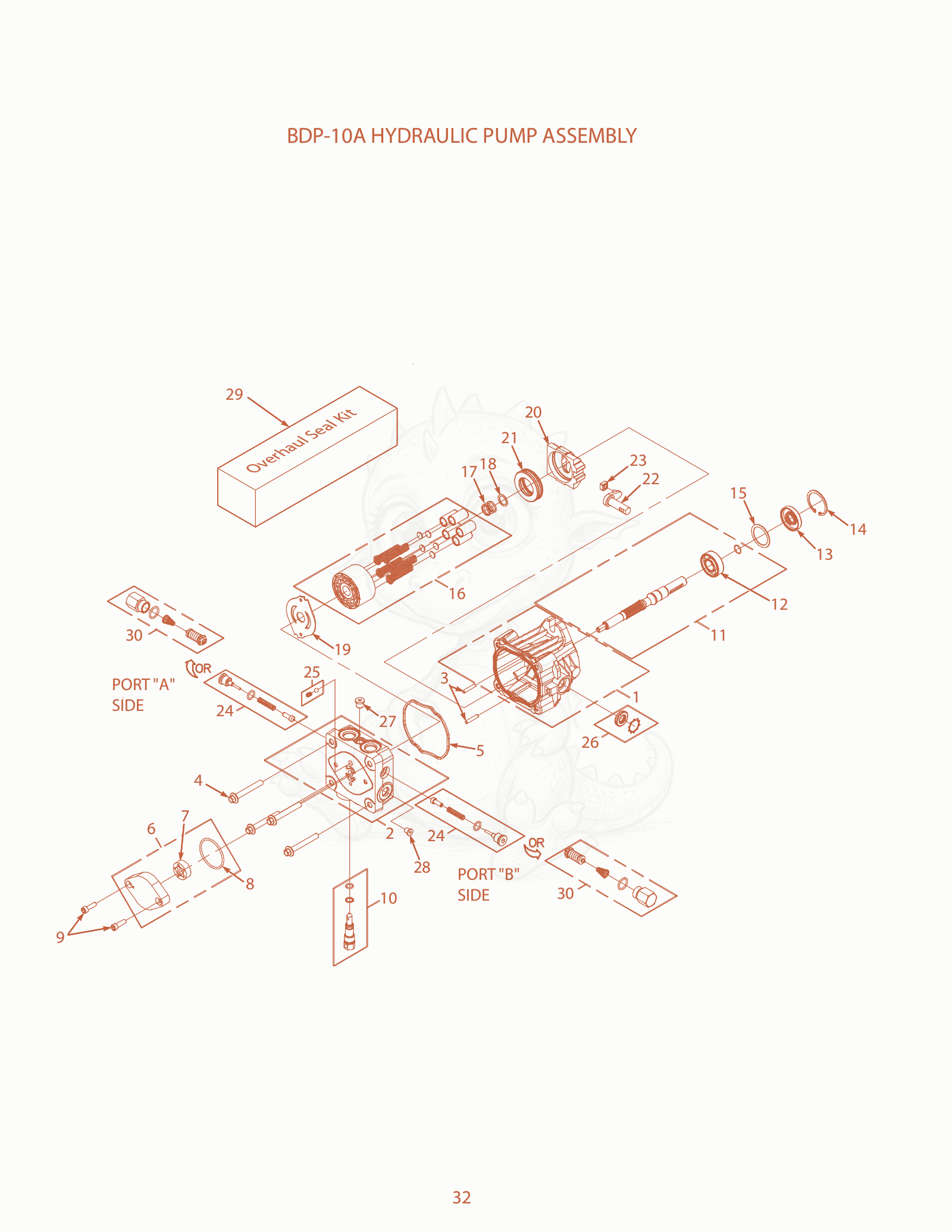

Despiece de BDP-10A Hydraulic Pump Assembly · STC48V-22FS-LE
- 1S70516No la vendemosHousing Kit
- 2S70573No la vendemosEnd Cap Kit
- 3S50641No la vendemosStraight Headless Pin
- 4S50969No la vendemosHex Flange Bolt, M8-1.25 x 60mm
- 5S51232No la vendemosHousing O-Ring
- 6S2513027No la vendemosCharge Pump Kit
- 7S50273No la vendemosGerotor Assembly
- 8S9004101-1340No la vendemosO-Ring
- 9S50095No la vendemosSocket Head Screw, M6 x 1.0-20mm
- 10S2513030No la vendemosBypass Valve Kit
- 11S70521No la vendemosPumpshaft Kit
- 12S50315No la vendemosBall Bearing, 17 x 40 x 12mm
- 13S51161No la vendemosLip Seal
- 14S50329No la vendemosRetaining Ring
- 15S50951No la vendemosSpacer
- 16S70331No la vendemosCylinder Block Kit
- 17S2003014No la vendemosBlock Spring
- 18S2003017No la vendemosBlock Thrust Washer
- 19S51444No la vendemosValve Plate
- 20S2003087No la vendemosSwash Plate
- 21S50551No la vendemosBall Thrust Bearing
- 22S2003005No la vendemosTrunnion Arm
- 23S2000015No la vendemosSlot Guide
- 24S2510062No la vendemosCheck Valve Kit (.024” Orifice) port “A” on Left Hand Pump, port “B” on Right Hand Pump
- 25S70403No la vendemosCharge Relief Kit
- 26S2513043No la vendemosTrunnion Seal with Retainer
- 27S9005110-4400No la vendemosStraight Thread Plug
- 28S50408No la vendemosStraight Headless Pin
- 29S70525No la vendemosOverhaul Seal Kit
- 30S70743No la vendemosSystem Check Relief Kit, port “B” on Left Hand Pump, port “A” on Right Hand Pump 33
