Cheetah SCZ-52V

SCZ-52V Sheet Metal Components Diagram

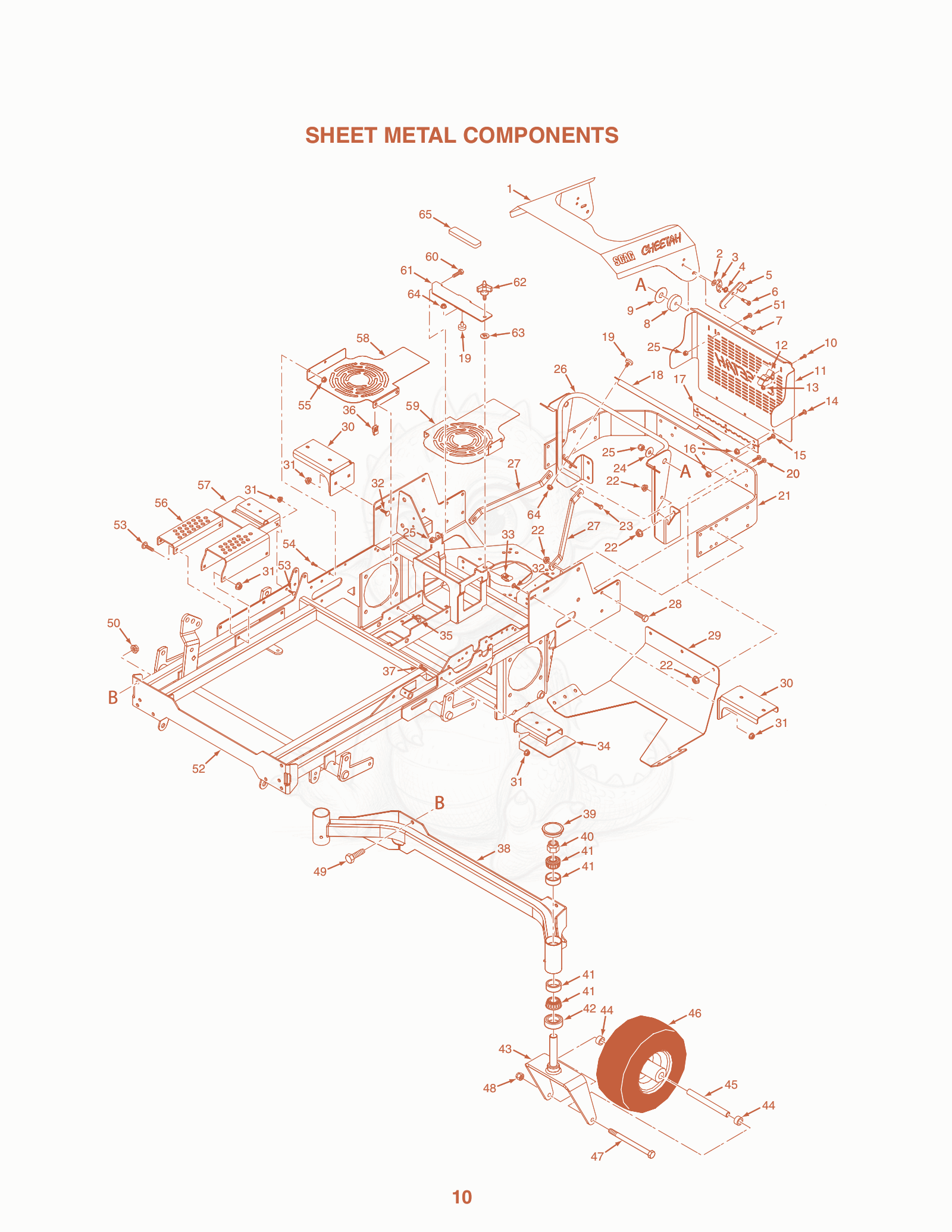

Exploded parts diagram of the Sheet Metal Components of a Scag SCZ-52V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S462265Not stocked
    Hood Assembly w/Decals - Kawasaki
  • 1S462916
    $207.99
    Scag 462916 - HOOD ASSY W/ DECALS, SCZ-29CV-EFIUnknown
  • 1S462638Not stocked
    Hood Assembly w/Decals - Briggs & Stratton
  • 2S04040-05
    $0.07
    Scag 04040-05 - FLATWASHER, 3/8(.406 X .812 X .065)
  • 3S424634
    $10.63
    Scag 424634 - LOCK, HOOD LATCH
  • 4S483507
    $6.05
    Scag 483507 - SPRING, HOOD LATCH
  • 5S424633
    $12.07
    Scag 424633 - LATCH, HOOD
  • 6S04009-07
    $4.03
    Scag 04009-07 - BOLT, 3/8 X .50 SHOULDER
  • 7S04001-21
    $0.63
    3/8-16 X 1-3/4 HH BOLT GRD5 SEC
  • 8S43740
    $27.78
    Scag 43740 - SPACER, HOOD - STT-KBD
  • 9S483471
    $7.25
    DISC, ANTI FRICTION
  • 10S04010-30Not stocked
    Screw, #8-32 x 1/2”
  • 11S425995
    $89.55
    Scag 425995 - BELTGUARD, SCZ-BV/FX
  • 11S425996
    $79.70
    Scag 425996 - BELTGUARD, SCZ-KH
  • 12S484190
    $7.84
    Scag 484190 - LATCH, SPRING CLIP
  • 13S04021-17
    $0.20
    Scag 04021-17 - LKNUT, #8-32 ELASTIC STOP
  • 14S04003-07
    $0.45
    Scag 04003-07 - BOLT, CARRIAGE 1/4-20 X 1/2"
  • 15S04003-02
    $0.31
    CARRIAGE BOLT, 1/4-20 X 3/4"
  • 16S04019-02
    $0.10
    Scag 04019-02 - NUT, 1/4-20 SERR FLG HH ZINC
  • 17S484143
    $97.03
    Scag 484143 - HINGE, BELT COVER
  • 18S425677
    $17.79
    Scag 425677 - HEAT SHIELD, ROPS
  • 18S427781
    $14.32
    Scag 427781 - HEATSHIELD ROPS
  • 19S481284
    $15.90
    Scag 481284 - BUMPER, RUBBER
  • 20S04104-01
    $3.69
    BHCS, TORX 3/8-16 X 1.0 ZINC
  • 21S425575
    $122.45
    Scag 425575 - BUMPER, REAR - SCZ
  • 22S04019-04
    $0.28
    Scag 04019-04 - NUT, 3/8-16 SERR FLG HH ZINC
  • 23S04001-19
    $0.39
    Scag 04001-19 - BOLT, HEX HEAD, 3/8-16 X 1"
  • 24S04041-11
    $1.51
    Scag 04041-11 - 3/8 F WASHER 1-1/2 X 7GA
  • 25S04021-09
    $0.20
    3/8-16 ELASTIC HEX LKNUT
  • 26S452223
    $169.46
    Scag 452223 - MTG WELDMENT, HOOD
  • 26S452267
    $168.21
    Scag 452267 - MTG WELDMENT, HOOD
  • 27S425408
    $17.30
    Scag 425408 - BRACE, HOOD SUPPORT
  • 28S04001-32
    $0.45
    BOLT, HEX HEAD, 3/8-16 X 1-1/4"
  • 29S425579
    $90.38
    Scag 425579 - SKID PLATE, SCZ-FX
  • 29S426806
    $69.64
    Scag 426806 - SKID PLATE, SCZ-CV
  • 30S425350
    $44.06
    Scag 425350 - MTG BRKT, FUEL TANK - REAR
  • 31S04019-03
    $0.15
    Scag 04019-03 - NUT, 5/16-18 SERR FLG HH ZINC
  • 32S04003-12
    $0.36
    Scag 04003-12 - CARRIAGE BOLT, 5/16-18 X 3/4"
  • 33S04110-03
    $2.09
    U-NUT, 3/8-16
  • 34S425573
    $37.19
    Scag 425573 - MTG BRKT, FUEL TANK - FRONT
  • 35S04001-14
    $0.14
    Scag 04001-14 - BOLT, HEX HEAD, 1/4-20 X 1"
  • 36S04110-01
    $1.08
    U-NUT
  • 37S04003-12
    $0.36
    Scag 04003-12 - CARRIAGE BOLT, 5/16-18 X 3/4"
  • 38S452193
    $366.27
    Scag 452193 - CASTER SUPT WELDMENT, SCZ-61V
  • 38S452194
    $409.23
    Scag 452194 - CASTER SUPT WELDMENT, SCZ-72V
  • 39S484195Not stocked
    Cap, Grease
  • 40S04021-20
    $4.43
    Scag 04021-20 - NUT, 1.0-14 UNS JAM-ELAS STOP
  • 41S48668
    $22.94
    BEARING W/RACE
  • 42S481025
    $4.36
    SEAL,2.00 OD X 1.625 BORE
  • 43S451416Not stocked
    Yoke Weldment
  • 44S43584
    $2.71
    SPACER, CASTER WHEEL
  • 45S43583
    $13.50
    Scag 43583 - SLEEVE, CASTER WHEEL
  • 46S9278
    $169.00
    Scag 9278 - Flat Free Front Caster Tire & Wheel Assy-Fits Wildcats & 61" 72" Tigers&Cheetahs
  • 46S482621
    $20.02
    Scag 482621 - BEARING, .75 ID TAPERED
  • 46S48114-10
    $3.60
    GREASE ZERK, 1/4-28 X 1.0
  • 47S04001-167
    $5.47
    HH BOLT, 1/2-13 X 9.50 ZINC
  • 48S04021-07
    $0.45
    1/2-13 ELASTIC TYP HX LKNUT
  • 49S04001-28
    $0.69
    Scag 04001-28 - BOLT, HEX HEAD, 7/16-14 X 1-1/4"
  • 50S04117-05
    $0.45
    Scag 04117-05 - LKNUT 7/16-14 FLG HH ELAS STOP
  • 51S04108-03
    $0.75
    CS,3/8-16 X 1.25 BUT HD-HXSOC
  • 52S462563
    $1,924.89
    Scag 462563 - MAINFRAME ASSY W/ DECALS, SCZ
  • 53S04001-09
    $0.40
    HHCS, 5/16-18 X 1.00 ZINC
  • 53S04030-03
    $0.06
    Scag 04030-03 - 5/16LKWHR.586X.317X.078THK(A
  • 54S04001-01
    $0.15
    Scag 04001-01 - BOLT, HEX HEAD, 1/4-20 X 3/4"
  • 55S04019-02
    $0.10
    Scag 04019-02 - NUT, 1/4-20 SERR FLG HH ZINC
  • 56S452408
    $63.27
    Scag 452408 - WELDMENT, LOWER CUTTING HGT BRKT
  • 57S425574
    $97.71
    Scag 425574 - ADJ BRKT, UPPER CUTTING HEIGHT
  • 58S425300
    $38.53
    Scag 425300 - FAN COVER, RH
  • 59S425299
    $38.53
    Scag 425299 - FAN COVER, LH
  • 60S04001-19
    $0.39
    Scag 04001-19 - BOLT, HEX HEAD, 3/8-16 X 1"
  • 61S425422
    $21.20
    Scag 425422 - COVER, BATTERY BOX
  • 62S481625-01
    $2.57
    WING NUT, 3/8-16
  • 63S04024-02
    $1.21
    Scag 04024-02 - NUT, PUSH-ON - 3/8 THD
  • 64S04019-03
    $0.15
    Scag 04019-03 - NUT, 5/16-18 SERR FLG HH ZINC
  • 65S48661
    $4.36
    Scag 48661 - RUBBER PAD
