Cheetah SCZ-52V

SCZ-52V 61RD Cutter Deck Diagram

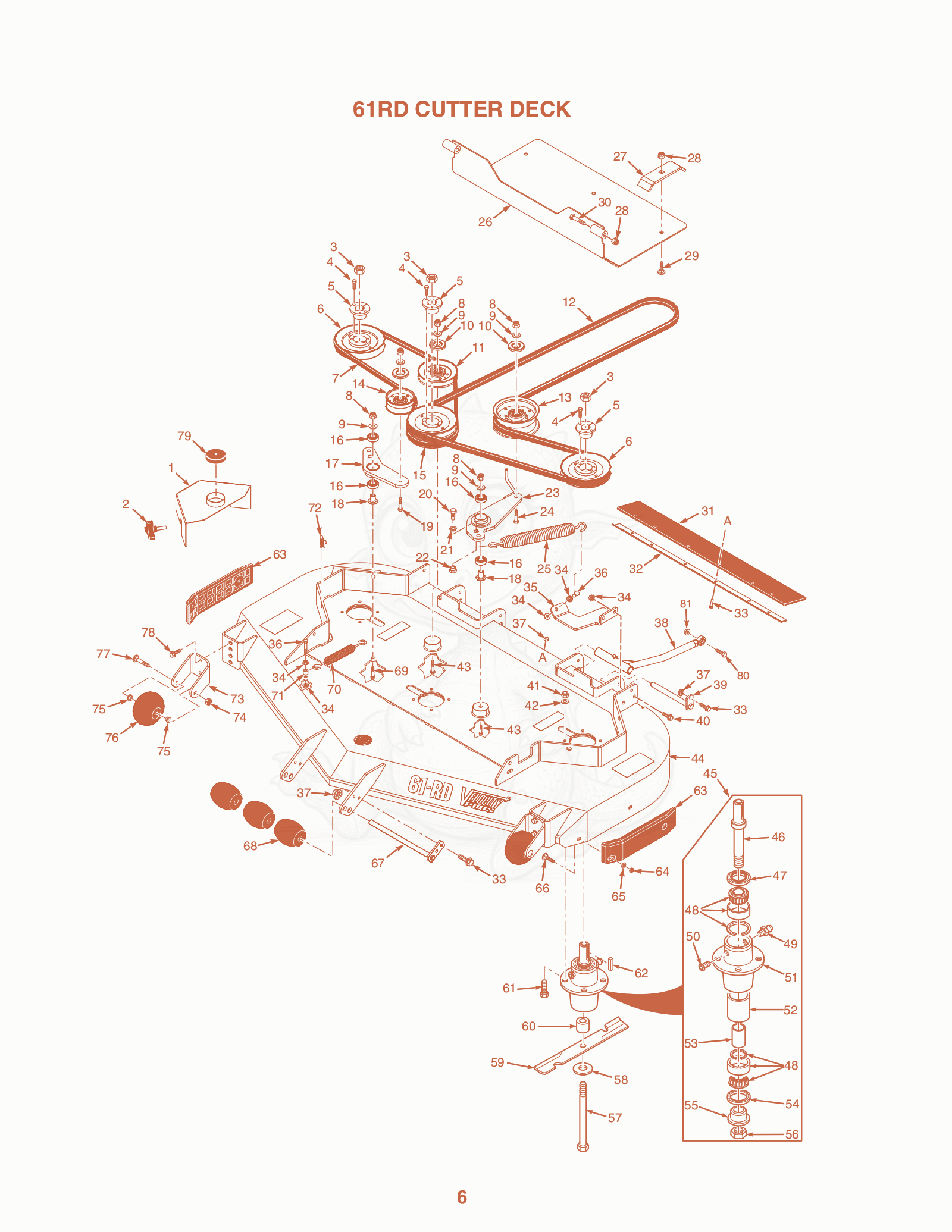

Exploded parts diagram of the 61RD Cutter Deck of a Scag SCZ-52V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S462407
    $84.78
    Scag 462407 - BELT COVER ASSY, LH SMCZ-61V
  • 1S462408
    $105.62
    Scag 462408 - BELT COVER ASSY, RH SMCZ-61V
  • 2S481625-01
    $2.57
    WING NUT, 3/8-16
  • 3S04020-09
    $0.63
    HEX NUT, 5/8-11
  • 4S04001-172
    $0.18
    HH BOLT, 1/4-20 X 1.00 GR 8 BLK
  • 5S48926
    $29.77
    TAPERED HUB
  • 6S483286
    $36.35
    Scag 483286 - PULLEY 6.33 OD - TAPER BORE
  • 7S483157Not stocked
    Belt
  • 8S04021-09
    $0.20
    3/8-16 ELASTIC HEX LKNUT
  • 9S04043-04
    $0.70
    Scag 04043-04 - FLATWASHER, 3/8"
  • 10S424367
    $1.95
    DUST SHIELD
  • 11S48181
    $25.17
    IDLER PULLEY
  • 12S483741
    $78.60
    BELT, CUTTER DECK SMT-61V-CAT
  • 13S483210Not stocked
    Pulley, 5” Idler
  • 14S483415Not stocked
    Pulley, 3-1/2” Idler
  • 15S483287
    $61.47
    Scag 483287 - PULLEY, 6.33 OD - DBL GROOVE
  • 16S48224
    $12.51
    BALL BEARINGS-NEUTRAL RET.
  • 17S461946
    $67.38
    IDLER ARM ASSY, SMTC
  • 18S43689Not stocked
    Pivot, Idler
  • 19S04001-31
    $0.89
    Scag 04001-31 - BOLT, HEX HEAD, 3/8-16 X 2-1/2"
  • 20S04001-17
    $0.47
    BOLT, HEX HEAD 5/16-18 x 2"
  • 21S04030-05
    $0.09
    LOCKWASHER, 7/16
  • 22S43686
    $7.63
    Scag 43686 - BOSS, SPRING ANCHOR - LH
  • 23S462269
    $67.38
    IDLER ARM ASSY, DECK DR (SERVICE)
  • 24S04001-54
    $0.96
    BOLT, HEX HEAD, 3/8-16X3"
  • 25S483246
    $49.53
    SPRING, LH DECK DRIVE - SMTC
  • 26S452341
    $87.22
    Scag 452341 - WELDMENT, DEBRIS SHIELD
  • 27S425897
    $32.18
    Scag 425897 - MTG BRKT, SHIELD
  • 28S04021-10
    $0.10
    Scag 04021-10 - 5/16-18 LOCKNUT ELASTIC TYPE
  • 29S04003-38
    $0.43
    Scag 04003-38 - CARRIAGE BOLT, 5/16-18 X 1.50 FULL
  • 30S04001-13
    $0.63
    BOLT, HEX HEAD, 5/16-18 X 2-3/4"
  • 31S484557
    $53.38
    Scag 484557 - PAD, RUBBER
  • 32S425899
    $42.01
    RETAINING PLATE, PAD
  • 33S04001-09
    $0.40
    HHCS, 5/16-18 X 1.00 ZINC
  • 34S04019-04
    $0.28
    Scag 04019-04 - NUT, 3/8-16 SERR FLG HH ZINC
  • 35S425335
    $8.51
    SPRING MNT, SMCZ
  • 36S04001-136
    $0.46
    Scag 04001-136 - BOLT, HEX HEAD 3/8-16 X 1-1/2"
  • 37S04021-10
    $0.10
    Scag 04021-10 - 5/16-18 LOCKNUT ELASTIC TYPE
  • 38S462225
    $162.35
    PUSHARM ASSY, LH - SCZ
  • 38S462226
    $162.35
    PUSHARM ASSY, RH - SCZ
  • 39S451240
    $50.33
    ROD WLMT, PUSHARM
  • 40S04001-19
    $0.39
    Scag 04001-19 - BOLT, HEX HEAD, 3/8-16 X 1"
  • 41S04021-22
    $0.26
    Scag 04021-22 - LOCKNUT, 5/16-18 ELAS STOP - GR 8
  • 42S04030-03
    $0.06
    Scag 04030-03 - 5/16LKWHR.586X.317X.078THK(A
  • 43S04001-54
    $0.96
    BOLT, HEX HEAD, 3/8-16X3"
  • 44S462505
    $2,374.37
    Scag 462505 - CUTTER DECK W/ DECALS, SMCZ-61RD
  • 45S461663
    $248.59
    SPINDLE ASSY
  • 46S43589
    $56.20
    Scag 43589 - SHAFT, CUTTER SPINDLE
  • 47S481024
    $4.36
    SEAL,2.00 OD X 1.50 BORE
  • 48S481022
    $57.56
    Scag 481022 Tapered Bearing Set
  • 49S48114-04
    $0.95
    Scag 48114-04 - GREASE FITTING 1/4-28 SELF-TAP
  • 50S48677
    $1.41
    Scag 48677 - RELIEF FITTING
  • 51S43644
    $56.87
    Scag 43644 - SPINDLE HOUSING
  • 52S43312
    $18.38
    Scag 43312 SW Outside Spacer
  • 53S43296
    $7.81
    SPACER, INSIDE
  • 54S481025
    $4.36
    SEAL,2.00 OD X 1.625 BORE
  • 55S43297
    $9.16
    Scag 43297 - SPINDLE BUSHING, BOTTOM
  • 56S481035
    $7.32
    NUT,1.06-18 THD
  • 57S04001-41
    $11.79
    5/8-11X9-1/2 HH CP SCR GRD5
  • 58S04043-06
    $1.72
    WASHER, 5/8 HARDENED
  • 59S482881
    $27.32
    Scag 482881 SCZ Cuttler Blade 21.0"
  • 60S43590
    $16.60
    Scag 43590 - SPACER, SPINDLE BOTTOM
  • 61S04001-176
    $0.47
    Scag 04001-176 - HH BOLT, 5/16-18 X 1.75 GR 8 BLK
  • 62S04063-08
    $1.08
    KEY BAR STOCK #C1018 1/4X1/4X2
  • 63S483176
    $32.55
    Scag 483176 - PAD, DECK WEAR - 48A/52A/61A
  • 64S04021-14Not stocked
    Nut, Center Lock 5/16-18
  • 65S04040-04
    $0.06
    Scag 04040-04 - FLATWASHER, 5/16
  • 66S04003-12
    $0.36
    Scag 04003-12 - CARRIAGE BOLT, 5/16-18 X 3/4"
  • 67S45944
    $21.04
    Scag 45944 - ROLLER SHAFT
  • 68S482295Not stocked
    Wheel, Anti-Scalp
  • 69S04001-46
    $0.81
    Scag 04001-46 - BOLT, HEX HEAD, 3/8-16 X 2-1/4"
  • 70S483703
    $31.37
    DECK SPRING, SMTC
  • 71S43063
    $7.49
    Scag 43063 - SPACER
  • 72S04110-03
    $2.09
    U-NUT, 3/8-16
  • 73S422478
    $27.10
    ANTI-SCALP WHEEL BRACKET
  • 74S04021-05
    $0.26
    Scag 04021-05 - LKNUT, 3/8-16 ELAS STOP
  • 75S48100-15
    $4.69
    Scag 48100-15 - BUSHING, .376 I.D. OILITE
  • 76S481632
    $21.03
    Scag 481632 - ANTI-SCALP WHEEL
  • 77S04003-26
    $1.76
    Scag 04003-26 - CARRIAGE BOLT, 3/8-16 X 4.00
  • 78S04017-27
    $1.21
    Scag 04017-27 - CPSCR,3/8-16X1"SERR FLG HH
  • 79S484368
    $4.81
    CAP, SPINDLE
  • 80S04001-128
    $2.56
    HHCS, 5/8-11 X 3.50 ZINC
  • 81S04021-23
    $1.34
    Scag 04021-23 - LOCKNUT, 5/8-11 CENTER LOCK
