Cheetah SCZ-52V

SCZ-52V SCZ EFI Electrical System Diagram

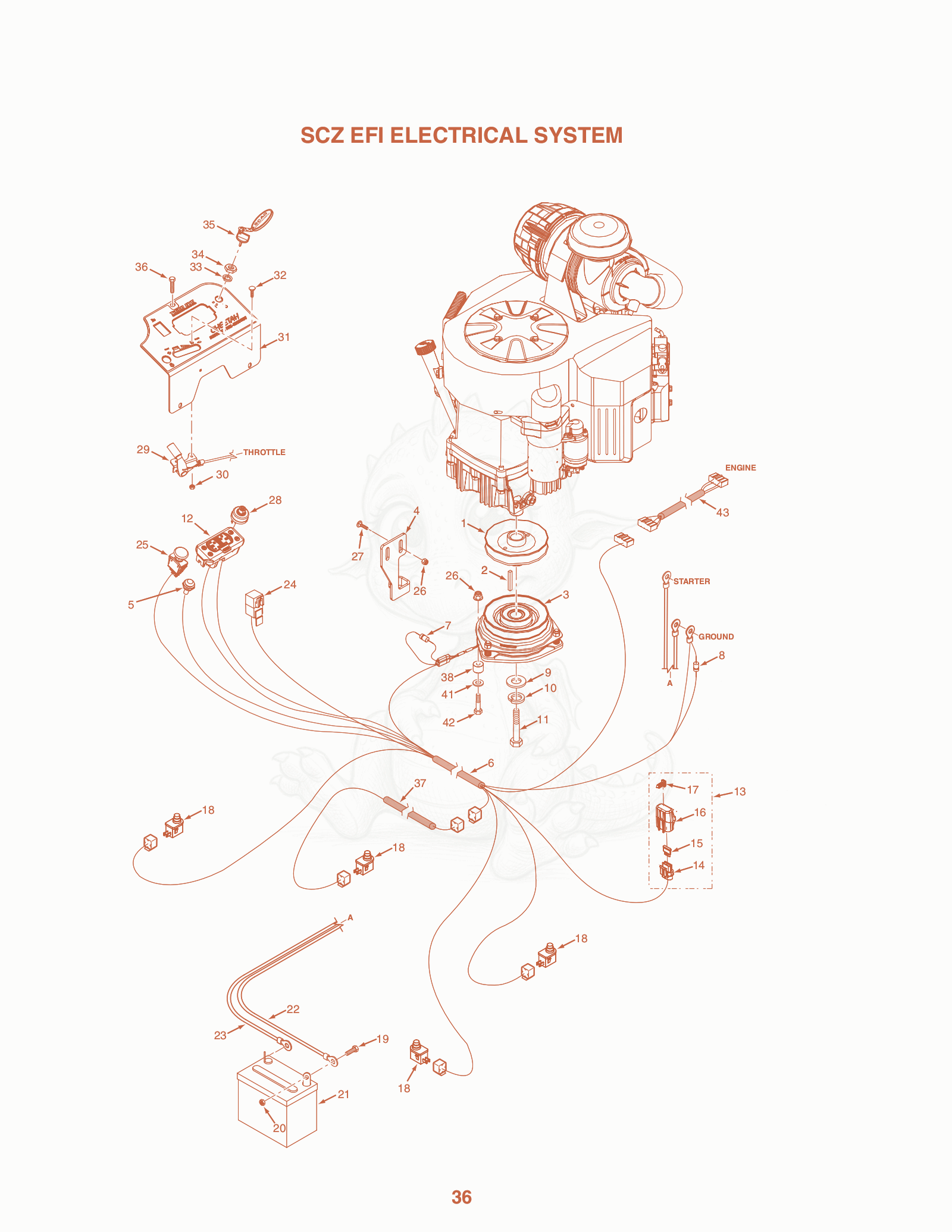

Exploded parts diagram of the SCZ EFI Electrical System of a Scag SCZ-52V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S484098
    $84.76
    Scag 484098 - PULLEY, 5.80 DIA - 1.125 BORE
  • 2S04063-23
    $1.89
    Scag 04063-23 - KEY, 1/4 X 1/4 X 3-1/4"
  • 3S461826
    $614.42
    ELEC CLUTCH W/TAG GT5
  • 4S426950Not stocked
    Bracket, Anti-Rotation
  • 5S481182
    $45.35
    Scag 481182 - GLOW PLUG INDICATOR LIGHT
  • 6S486130
    $435.70
    Scag 486130 SCZ-CV-EFI Wire Harness
  • 7S483958
    $2.05
    DIODE, 600 V 6A
  • 8S482253
    $7.67
    Scag 482253 - DIODE
  • 9S04041-28
    $2.81
    FLATWASHER, 7/16"
  • 10S04030-05
    $0.09
    LOCKWASHER, 7/16
  • 11S04102-03
    $1.88
    HHCS, 7/16-20 X 2.25 W/ PATCH
  • 12S484721
    $361.28
    TIGER EYE CLUSTER GAUGE
  • 13S485739
    $32.18
    FUSE HOLDER W/ LEADS
  • 14S483629
    $6.94
    FUSE HOLDER, SEALED
  • 15S48298
    $3.60
    Scag 48298 - AUTO FUSE 20 AMP
  • 16S483643
    $4.26
    FUSE COVER, SEALED SINGLE
  • 17S482588
    $1.71
    Scag 482588 - CLIP, WIRE HARNESS
  • 18S481638
    $14.67
    Scag 481638 - SWITCH, INTERLOCK-SEAT
  • 19S04001-44
    $0.09
    BOLT, HEX HEAD, 1/4-20 X 1/2"
  • 20S04020-02
    $0.04
    Scag 04020-02 - HEX NUT, 1/4-20
  • 22S48029-07
    $11.56
    Scag 48029-07 - BATTERY CABLE
  • 23S48029-13
    $13.24
    Scag 48029-13 - BATTERY CABLE, 25" RED
  • 24S483013
    $19.87
    Scag 483013 - RELAY SWITCH W/ DIODE
  • 25S485833
    $45.43
    SWITCH, PTO SEALED
  • 26S04117-01
    $0.26
    Scag 04117-01 - LKNUT, 5/16-18 FLG HH ELAS STOP
  • 27S04003-04
    $0.40
    Scag 04003-04 - CARRIAGE BOLT, 5/16-18 X 1"
  • 28S48798
    $26.09
    KEYSWITCH (6 POLE) W/HARDWARE
  • 29S481544
    $26.92
    THROTTLE AND CHOKE CONTROLS
  • 30S04021-26
    $0.20
    Scag 04021-26 - LKNUT, #10-24 ELASTIC STOP
  • 31S462828
    $64.94
    INSTR PANEL W/ DECALS, SCZ
  • 32S04003-43
    $0.62
    Scag 04003-43 - CARRIAGE BOLT, #10-24 X .50 LG RHSN
  • 33S48017-03
    $0.46
    Scag 48017-03 - LK WASHER INTERNAL 5/8
  • 34S48017-04
    $1.43
    Scag 48017-04 - HEX NUT 5/8-32 SPECIAL
  • 35S462069
    $7.74
    FOB ASSY W/ KEY
  • 36S04017-04
    $0.46
    Scag 04017-04 - CPSCR,1/4-20X.50 SERR FLG HH Z
  • 37S484722
    $57.59
    Scag 484722 - WIRE HARNESS, OPER PLATFORM - SCZ
  • 38S431009
    $4.76
    BUSHIN
  • 39S04117-01
    $0.26
    Scag 04117-01 - LKNUT, 5/16-18 FLG HH ELAS STOP
  • 40S04003-04
    $0.40
    Scag 04003-04 - CARRIAGE BOLT, 5/16-18 X 1"
  • 41S04040-15
    $0.07
    FLATWASHER, 5/16"
  • 42S04001-11
    $0.62
    HHCS, 5/16-18 X 1.50 ZINC
  • 43S486139
    $23.84
    WIRE HARNESS ADAPTER, SCZ-37BV EFI
