V-Ride SVR-52

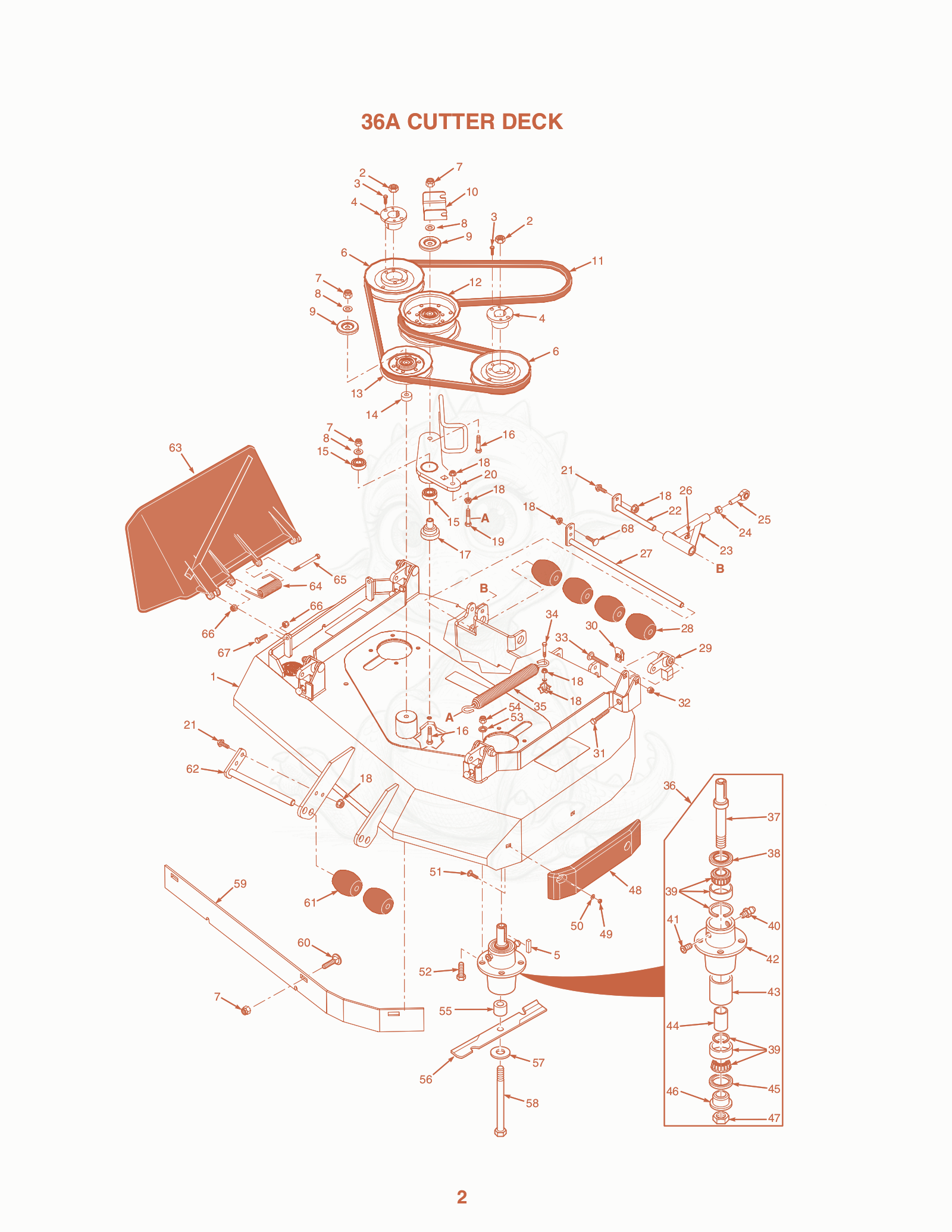

SVR-52 36A Cutter Deck Diagram

Exploded parts diagram of the 36A Cutter Deck of a Scag SVR-52, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S462361Not stocked
    Cutter Deck w/Decals - 36A
  • 2S04020-09
    $0.63
    HEX NUT, 5/8-11
  • 3S04001-172
    $0.18
    HH BOLT, 1/4-20 X 1.00 GR 8 BLK
  • 4S48926
    $29.77
    TAPERED HUB
  • 5S04063-08
    $1.08
    KEY BAR STOCK #C1018 1/4X1/4X2
  • 6S483284
    $35.71
    PULLEY, 5.73 OD - TAPER BORE
  • 7S04021-09
    $0.20
    3/8-16 ELASTIC HEX LKNUT
  • 8S04043-04
    $0.70
    Scag 04043-04 - FLATWASHER, 3/8"
  • 9S424367
    $1.95
    DUST SHIELD
  • 10S424615
    $4.84
    Scag 424615 - BRACKET, BELT GUIDE
  • 11S483969
    $50.08
    Scag 483969 - BELT, CUTTER DECK - SMVR-36
  • 12S483210Not stocked
    Pulley, 5" Idler
  • 13S48181
    $25.17
    IDLER PULLEY
  • 14S43077
    $4.55
    Scag 43077 - SPACER, J PULL ROD
  • 15S48224
    $12.51
    BALL BEARINGS-NEUTRAL RET.
  • 16S04001-62
    $1.13
    Scag 04001-62 - BOLT, HEX HEAD 3/8-16 X 3-1/4"
  • 17S43816
    $25.25
    Scag 43816 - PIVOT, IDLER.
  • 18S04019-04
    $0.28
    Scag 04019-04 - NUT, 3/8-16 SERR FLG HH ZINC
  • 19S04001-136
    $0.46
    Scag 04001-136 - BOLT, HEX HEAD 3/8-16 X 1-1/2"
  • 20S462233
    $75.55
    Scag 462233 - IDLER ARM ASSY, SMVR-36A(SERV)
  • 21S04001-09
    $0.40
    HHCS, 5/16-18 X 1.00 ZINC
  • 22S451724
    $34.29
    SHAFT WLMT, PUSHARM MTG
  • 23S461755Not stocked
    Pusharm Assy., LH
  • 23S461756Not stocked
    Pusharm Assy., RH
  • 24S04020-08
    $0.46
    Scag 04020-08 - HEX NUT, 1/2-20 RH
  • 25S48542
    $38.83
    ROD END (MALE) RH THREAD
  • 26S48114-08
    $3.84
    GRSE FIT'G, 90 DEG
  • 27S452076Not stocked
    Shaft Weldment
  • 28S482295Not stocked
    Wheel, Anti-Scalp
  • 29S483361
    $20.94
    Scag 483361 - LEVER, DECK LEVEL
  • 30S04110-03
    $2.09
    U-NUT, 3/8-16
  • 31S04107-04
    $1.30
    Scag 04107-04 - HHCS, 3/8-16 X 2.00 SPECIAL LOCK
  • 32S04021-11
    $0.26
    Scag 04021-11 - HEX NUT, ELASTIC STOP, 7/16-14
  • 33S04003-42
    $2.27
    CARR BOLT, 7/16-14 X 2.25
  • 34S04001-136
    $0.46
    Scag 04001-136 - BOLT, HEX HEAD 3/8-16 X 1-1/2"
  • 35S484020
    $61.35
    SPRING, CUTTER DECK - SMVR
  • 36S461663
    $248.59
    SPINDLE ASSY
  • 37S43589
    $56.20
    Scag 43589 - SHAFT, CUTTER SPINDLE
  • 38S481024
    $4.36
    SEAL,2.00 OD X 1.50 BORE
  • 39S481022
    $57.56
    Scag 481022 Tapered Bearing Set
  • 40S48114-04
    $0.95
    Scag 48114-04 - GREASE FITTING 1/4-28 SELF-TAP
  • 41S48677
    $1.41
    Scag 48677 - RELIEF FITTING
  • 42S43644
    $56.87
    Scag 43644 - SPINDLE HOUSING
  • 43S43312
    $18.38
    Scag 43312 SW Outside Spacer
  • 44S43296
    $7.81
    SPACER, INSIDE
  • 45S481025
    $4.36
    SEAL,2.00 OD X 1.625 BORE
  • 46S43297
    $9.16
    Scag 43297 - SPINDLE BUSHING, BOTTOM
  • 47S481035
    $7.32
    NUT,1.06-18 THD
  • 48S483174
    $32.55
    PAD, DECK WEAR - 36A / 72A
  • 49S04021-04
    $0.26
    Scag 04021-04 - NUT, 5/16-18 CENTER LOCK
  • 50S04040-04
    $0.06
    Scag 04040-04 - FLATWASHER, 5/16
  • 51S04003-12
    $0.36
    Scag 04003-12 - CARRIAGE BOLT, 5/16-18 X 3/4"
  • 52S04001-176
    $0.47
    Scag 04001-176 - HH BOLT, 5/16-18 X 1.75 GR 8 BLK
  • 53S04030-03
    $0.06
    Scag 04030-03 - 5/16LKWHR.586X.317X.078THK(A
  • 54S04021-22
    $0.26
    Scag 04021-22 - LOCKNUT, 5/16-18 ELAS STOP - GR 8
  • 55S43590
    $16.60
    Scag 43590 - SPACER, SPINDLE BOTTOM
  • 56S482878
    $22.66
    CUTTER BLADE, 18.0"
  • 57S04043-06
    $1.72
    WASHER, 5/8 HARDENED
  • 58S04001-41
    $11.79
    5/8-11X9-1/2 HH CP SCR GRD5
  • 59S423783
    $72.86
    Scag 423783 - BAFFLE, FLG - 36A
  • 60S04003-23
    $1.31
    Scag 04003-23 - CARRIAGE BOLT, 3/8-16 X 1.0
  • 61S482295Not stocked
    Wheel, Anti-Scalp
  • 62S451926Not stocked
    Shaft Weldment
  • 63S461356
    $74.65
    DISCH CHUTE ASSY, ADV SMALL
  • 64S482245
    $10.47
    Scag 482245 - SPRING, DISCHARGE CHUTE
  • 65S04001-154
    $2.54
    Scag 04001-154 - HH BOLT, 5/16-18 X 4.75 ZINC
  • 66S04021-10
    $0.10
    Scag 04021-10 - 5/16-18 LOCKNUT ELASTIC TYPE
  • 67S04001-12
    $0.46
    BOLT, HEX HEAD, 5/16-18 X 1.75
  • 68S04003-04
    $0.40
    Scag 04003-04 - CARRIAGE BOLT, 5/16-18 X 1"
