V-Ride SVR-52

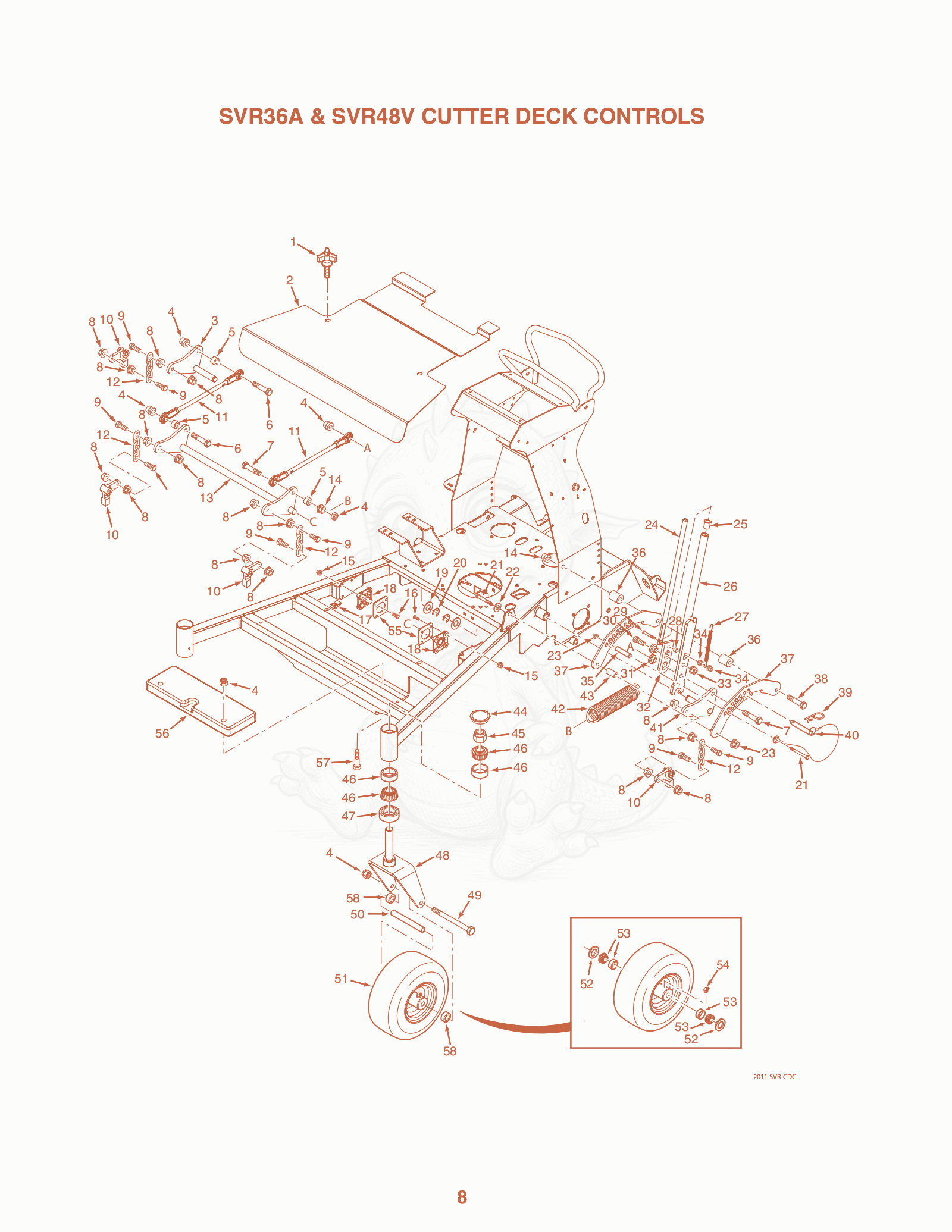

SVR-52 SVR36A & SVR48V Cutter Deck Controls Diagram

Exploded parts diagram of the SVR36A & SVR48V Cutter Deck Controls of a Scag SVR-52, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S481625-01
    $2.57
    WING NUT, 3/8-16
  • 2S491536
    $87.87
    BELT COVER W/ DECALS, SVR-36AUnknown
  • 2S491537Not stocked
    Belt Cover w/Decals (48V)
  • 3S452063
    $32.49
    ARM WLMT, RH
  • 4S04021-07
    $0.45
    1/2-13 ELASTIC TYP HX LKNUT
  • 5S43806
    $10.57
    SPACER, DECK LINKAGE
  • 6S04001-52
    $1.44
    Scag 04001-52 - BOLT, HEX HEAD, 1/2-13 X 2-1/2
  • 7S04001-74
    $1.67
    Scag 04001-74 - BOLT, HEX HEAD 1/2-13 X 3"
  • 8S04019-04
    $0.28
    Scag 04019-04 - NUT, 3/8-16 SERR FLG HH ZINC
  • 9S04001-20
    $0.47
    BOLT, HEX HEAD, 3/8-16 X 1-1/2"
  • 10S483361
    $20.94
    Scag 483361 - LEVER, DECK LEVEL
  • 11S483987
    $87.02
    Scag 483987 - LINKAGE ASSY, DECKLIFT
  • 11S483876
    $85.82
    Scag 483876 - LINKAGE ASSY, DECK LIFT
  • 12S48540Not stocked
    Chain
  • 13S452057
    $74.98
    Scag 452057 - DECKLIFT WELDMENT, SVR-36
  • 13S452053
    $346.42
    Scag 452053 - DECKLIFT WELDMENT, SVR
  • 14S04019-06
    $0.70
    Scag 04019-06 - NUT, 1/-13 SERR FLG HH ZINC
  • 15S04021-10
    $0.10
    Scag 04021-10 - 5/16-18 LOCKNUT ELASTIC TYPE
  • 16S04001-09
    $0.40
    HHCS, 5/16-18 X 1.00 ZINC
  • 17S04110-04
    $5.51
    Scag 04110-04 - U-NUT, 3/8-16
  • 18S483628
    $23.25
    Scag 483628 - BEARING, .75 SPHERICAL FLANGE
  • 18S483334
    $15.32
    Scag 483334 - BEARING, DECK LIFT
  • 19S04041-08
    $0.46
    3/4 FWSHR 1-1/4X49/64X16GA
  • 20S04050-02
    $0.51
    Scag 04050-02 - .750TRUARC R.RING 5133-75
  • 21S04001-54
    $0.96
    BOLT, HEX HEAD, 3/8-16X3"
  • 22S04041-07
    $0.47
    3/8 FWSHR 15/16X25/64X12GA
  • 23S04021-09
    $0.20
    3/8-16 ELASTIC HEX LKNUT
  • 24S43747
    $36.41
    ACTUATOR ROD, DECK LATCH
  • 25S483453-14
    $3.88
    Scag 483453-14 - BEARING, .625 ID PLASTIC
  • 26S452061
    $91.07
    Scag 452061 - HANDLE WELDMENT, DECK LATCH
  • 27S483600
    $14.71
    SPRING, DECK LATCH
  • 28S43212
    $4.02
    Scag 43212 - SLEEVE, HYDRO LINKAGE
  • 29S04001-31
    $0.89
    Scag 04001-31 - BOLT, HEX HEAD, 3/8-16 X 2-1/2"
  • 30S04001-183
    $1.30
    Scag 04001-183 - HHCS, 1/2-13 X 1.75
  • 31S43748
    $1.41
    Scag 43748 - BUSHING, DECK LATCH ** SUPERSEDED TO 431087 **
  • 32S424652
    $19.38
    DECK LATCH, OUTER
  • 33S04019-06
    $0.70
    Scag 04019-06 - NUT, 1/-13 SERR FLG HH ZINC
  • 34S04021-09
    $0.20
    3/8-16 ELASTIC HEX LKNUT
  • 35S43554
    $8.80
    Scag 43554 - SPACER
  • 36S43850
    $20.36
    SPACER, DECKLIFT SUPT
  • 36S43666
    $12.75
    SPACER, FOOTPEDAL - SZC
  • 37S425064
    $35.96
    Scag 425064 - DECK HEIGHT BRKT
  • 38S04001-82
    $5.93
    Scag 04001-82 - HHCS, 1/2-13 X 4.50 ZINC
  • 39S04062-04
    $1.43
    HAIRPIN, COTTER, .177 X 3.25
  • 40S483345
    $10.75
    Scag 483345 - RING PIN ASSY W/ LANYARD
  • 41S452062
    $45.36
    Scag 452062 - ARM WELDMENT, LH
  • 42S483763Not stocked
    Spring, Deck Lift
  • 43S43805
    $10.30
    Scag 43805 - SPACER
  • 44S484195Not stocked
    Cap, Grease
  • 45S04021-20
    $4.43
    Scag 04021-20 - NUT, 1.0-14 UNS JAM-ELAS STOP
  • 46S481657Not stocked
    Bearing w/Race
  • 47S481025
    $4.36
    SEAL,2.00 OD X 1.625 BORE
  • 48S452034
    $84.13
    Scag 452034 - CASTER YOKE WELDMENT, SVR
  • 49S04001-80
    $5.62
    BOLT, HEX HEAD, 1/2-13 X 6-1/2"
  • 50S43844Not stocked
    Sleeve, Caster Wheel
  • 51S921DNot stocked
    Caster Wheel Assembly, 11 x 4.0-5
  • 52S482622
    $9.20
    Scag 482622 - SEAL, 1.125 X 1.785 X .469
  • 53S482621
    $20.02
    Scag 482621 - BEARING, .75 ID TAPERED
  • 54S48114-03
    $10.37
    Scag 48114-03 - GREASE FITTING 45 DEG
  • 55S425099
    $32.87
    REINFORCEMENT, BEARING
  • 55S425209
    $8.02
    Scag 425209 - REINF, BEARING
  • 56S41020
    $110.10
    WEIGHT, SMST-61
  • 57S04001-190
    $2.21
    HHCS, 1/2-13 X 2.75
  • 57S04001-82
    $5.93
    Scag 04001-82 - HHCS, 1/2-13 X 4.50 ZINC
  • 57S04001-37
    $4.03
    1/2-13X5-1/2 HH BOLT GRD5 ZINC
  • 58S43584
    $2.71
    SPACER, CASTER WHEEL
