V-Ride SVR-52

SVR-52 SVR36A & SVR48V Hydraulics AND Engine Components Diagram

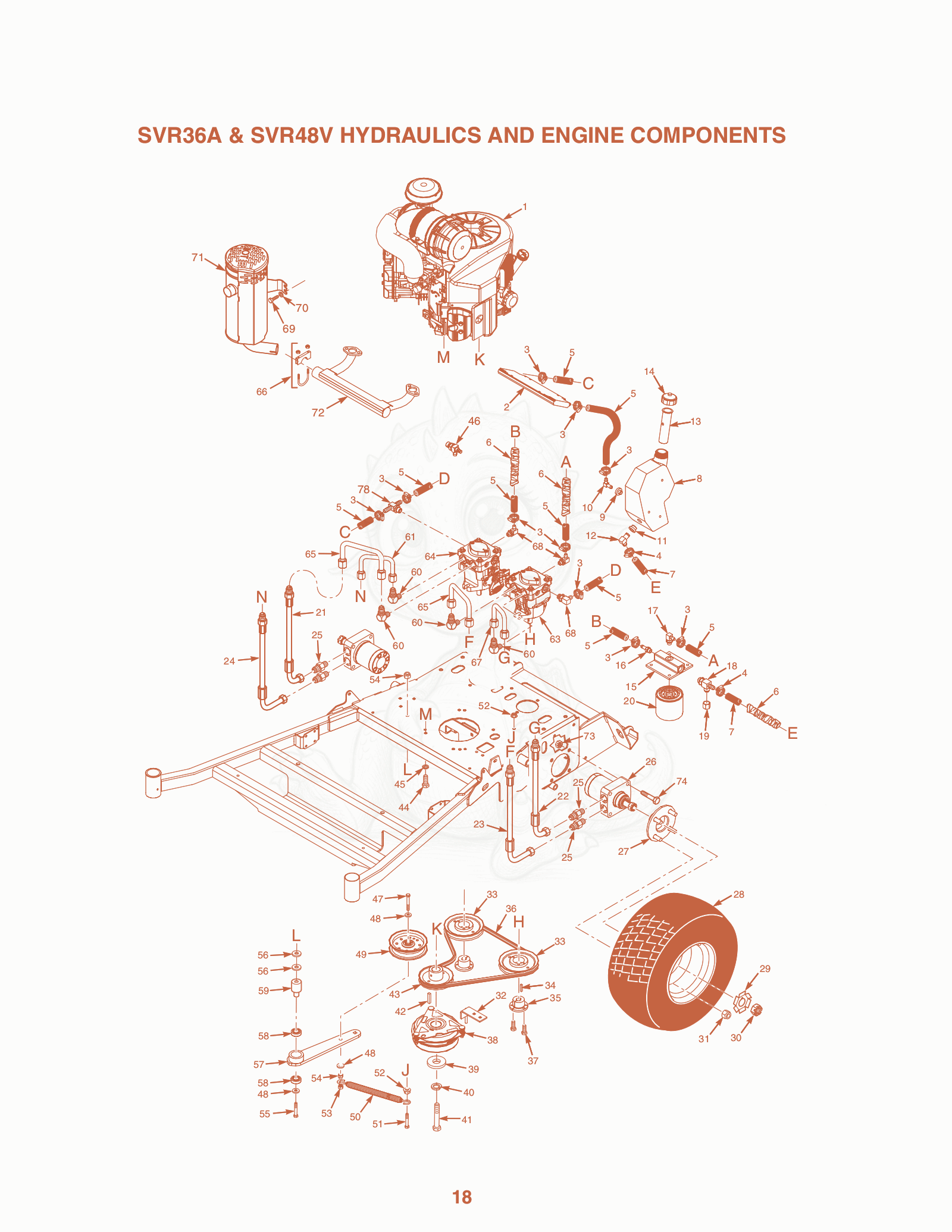

Exploded parts diagram of the SVR36A & SVR48V Hydraulics AND Engine Components of a Scag SVR-52, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S485018Not stocked
    Engine, 15hp Kawasaki FS541V
  • 1S485019Not stocked
    Engine, 19hp Kawasaki FX600V
  • 1S484102Not stocked
    Engine, 22hp Kawasaki FX691V
  • 2S482708Not stocked
    Cooler, Transmission (48V)
  • 3S48136-13
    $6.78
    Scag 48136-13 - CLAMP, .69 MAX DIA
  • 4S48136-05
    $3.41
    Scag 48136-05 - CLAMP, HOSE
  • 5S48811
    $0.45
    HOSE, 3/8" ID. PUSHLOCK- (ORDER BY THE INCH)
  • 6S482839Not stocked
    Heatshield, Flexible
  • 7S48351
    $0.46
    Scag 48351 - FUEL HOSE-NOT CUT TO DETAILS(PER INCH)
  • 8S462176
    $207.60
    HYDRUALIC TANK ASSY, SVR
  • 9S482571
    $11.70
    BUSHING, .56 DIA VITON
  • 10S482572
    $9.49
    FITTING, 90 - .38 HOSE
  • 11S482573
    $12.99
    BUSHING, .78 DIA VITON
  • 12S482574
    $17.46
    Scag 482574 - FITTING, 90 - .50 HOSE
  • 13S481507
    $12.41
    Scag 481507 - INSERT, FILLER NECK
  • 14S481164
    $17.34
    CAP, HYDRAULIC TANK
  • 15S482417
    $121.22
    Scag 482417 - FILTER HEAD ASSY
  • 16S482800-02
    $16.32
    Scag 482800-02 - CONNECTOR, 6 TO 3/8 HOSE
  • 17S482266-01
    $30.75
    ELBOW, 9/16 O-RING X 3/8 HOSE
  • 18S482481Not stocked
    Tee Fitting, 3/4 O-Ring
  • 19S48571-02
    $5.58
    CAP, 3/4-16 JIC
  • 20S48462-01
    $24.56
    FILTER ELEMENT
  • 21S484506
    $73.59
    Scag 484506 - HOSE ASSY, SVR - 14.0
  • 22S484503
    $72.58
    HOSE ASSY, SVR - 13.25
  • 23S484504
    $84.93
    Scag 484504 - HOSE ASSY, SVR - 16.5
  • 24S484505
    $83.25
    HOSE ASSY, SVR - 15.0
  • 25S48572-02
    $11.89
    TUBE, UNION 1/2 X 5/8
  • 26S483388Not stocked
    Wheel Motor
  • 27S462275
    $119.08
    Scag 462275 SVR Wheel Hub Assembly
  • 28S484361
    $217.87
    Scag 484361 SVR Wheel Assembly 18X8.50-8.0
  • 28S484056
    $247.81
    Scag 484056 - WHEEL ASSY, 20 X 10.50-8
  • 28S484362Not stocked
    Rim w/Valve Stem (36)
  • 28S481868
    $178.51
    Scag 481868 - RIM W/VALVE STEM
  • 28S481869
    $208.64
    TIRE, 18 X 8.5 - 8
  • 28S484057
    $197.32
    TIRE, 20 x 10.50-8
  • 29S422214
    $3.99
    LOCK WASHER WHEEL MOTOR
  • 30S48679
    $25.58
    Scag 48679 - 3/4-28 UNEF HEX CASTLE NUT
  • 31S04028-02
    $1.43
    WHEEL NUT, 1/2-20 X 13/16 HEX
  • 32S425213
    $15.11
    BRKT, ANTI-ROTATION - SVR-36AUnknown
  • 32S425086Not stocked
    Anti-Rotation Bracket (48V)
  • 33S482649
    $46.79
    PULLEY, 5.45 OD - TAPER BORE
  • 34S04063-14
    $0.89
    5 X 5 X 25MM KEY CR1018
  • 35S482085
    $26.97
    TAPERED HUB, 15 MM BORE
  • 36S484357Not stocked
    Belt, Pump Drive (36)
  • 36S483520
    $22.70
    BELT, PUMP DRIVE - SWZV
  • 37S04001-172
    $0.18
    HH BOLT, 1/4-20 X 1.00 GR 8 BLK
  • 38S462166
    $374.40
    CLUTCH W/TAG, GT2.5-FE02
  • 39S04041-28
    $2.81
    FLATWASHER, 7/16"
  • 40S04030-05
    $0.09
    LOCKWASHER, 7/16
  • 41S04102-03
    $1.88
    HHCS, 7/16-20 X 2.25 W/ PATCH
  • 42S04063-28
    $1.19
    KEY, 1/4 X 1/4 X 3.50
  • 43S483802
    $73.76
    Scag 483802 - PULLEY, 4.75 OD - 1.12 BORE
  • 44S04001-32
    $0.45
    BOLT, HEX HEAD, 3/8-16 X 1-1/4"
  • 45S04030-04
    $0.06
    LOCKWASHE3/8"
  • 46S484089
    $29.10
    Scag 484089 - OIL DRAIN, M20 THD
  • 47S04001-161
    $3.54
    HH BOLT, 3/8-16 X 2.75 FULL THD
  • 48S04043-04
    $0.70
    Scag 04043-04 - FLATWASHER, 3/8"
  • 49S483213Not stocked
    Pulley, 4-1/2" Idler
  • 50S483526
    $24.18
    SPRING, TRANSMISSION IDLER
  • 51S04001-54
    $0.96
    BOLT, HEX HEAD, 3/8-16X3"
  • 52S04019-04
    $0.28
    Scag 04019-04 - NUT, 3/8-16 SERR FLG HH ZINC
  • 53S04021-05
    $0.26
    Scag 04021-05 - LKNUT, 3/8-16 ELAS STOP
  • 54S04021-09
    $0.20
    3/8-16 ELASTIC HEX LKNUT
  • 55S04001-62
    $1.13
    Scag 04001-62 - BOLT, HEX HEAD 3/8-16 X 3-1/4"
  • 56S04041-12
    $0.35
    Scag 04041-12 - 3/8 PL WASHER 1.5X.375X16GA
  • 57S462229
    $64.98
    IDLER ARM ASSY, PUMP DRIVE (SERV)
  • 58S48224
    $12.51
    BALL BEARINGS-NEUTRAL RET.
  • 59S43734
    $33.32
    Scag 43734 - PIVOT, IDLER - LONG
  • 60S48350-02
    $24.77
    Scag 48350-02 - ELBOW, 90 DEG - 1/2 X 1/2
  • 61S484524
    $23.64
    Scag 484524 - U-TUBE ASSY, 1/2" X 4" WIDE
  • 62S483280
    $3.14
    Scag 483280 - TUBING, OIL DRAIN-.50 ID(PER INCH)
  • 63S483863
    $621.75
    PUMP, LH - SVR
  • 63S484760
    $871.77
    Scag 484760 - PUMP, LH - 10CC W/SHOCK VALVE
  • 64S483862
    $621.75
    Scag 483862 - PUMP, RH - SVR
  • 64S484761
    $871.77
    PUMP, RH - 10CC W/SHOCK VALVE
  • 65S484525
    $24.85
    Scag 484525 - U-TUBE ASSY, 1/2" X 5" WIDE
  • 66S48633
    $5.96
    1-1/2 MUFFLER CLAMP
  • 67S484523
    $22.09
    Scag 484523 - U-TUBE ASSY, 1/2" X 3" WIDE
  • 68S482266-01
    $30.75
    ELBOW, 9/16 O-RING X 3/8 HOSE
  • 69S04119-02
    $1.19
    Scag 04119-02 - HHCS, M8-1.25 X 20 FLG HD
  • 70S04030-03
    $0.06
    Scag 04030-03 - 5/16LKWHR.586X.317X.078THK(A
  • 71S484620
    $167.13
    MUFFLER, VERTICAL - FS/FX 603
  • 71S484326
    $167.13
    MUFFLER, FS/FX 726 ENGINE
  • 72S484327
    $101.41
    Scag 484327 - MANIFOLD, FS/FX 726 ENGINE
  • 73S04021-19
    $0.40
    LOCKNUT, HEX 1/2-13 CENTER LOCK
  • 74S04001-52
    $1.44
    Scag 04001-52 - BOLT, HEX HEAD, 1/2-13 X 2-1/2
