Wildcat SWZ-48V

SWZ-48V Cutter Deck Controls Diagram

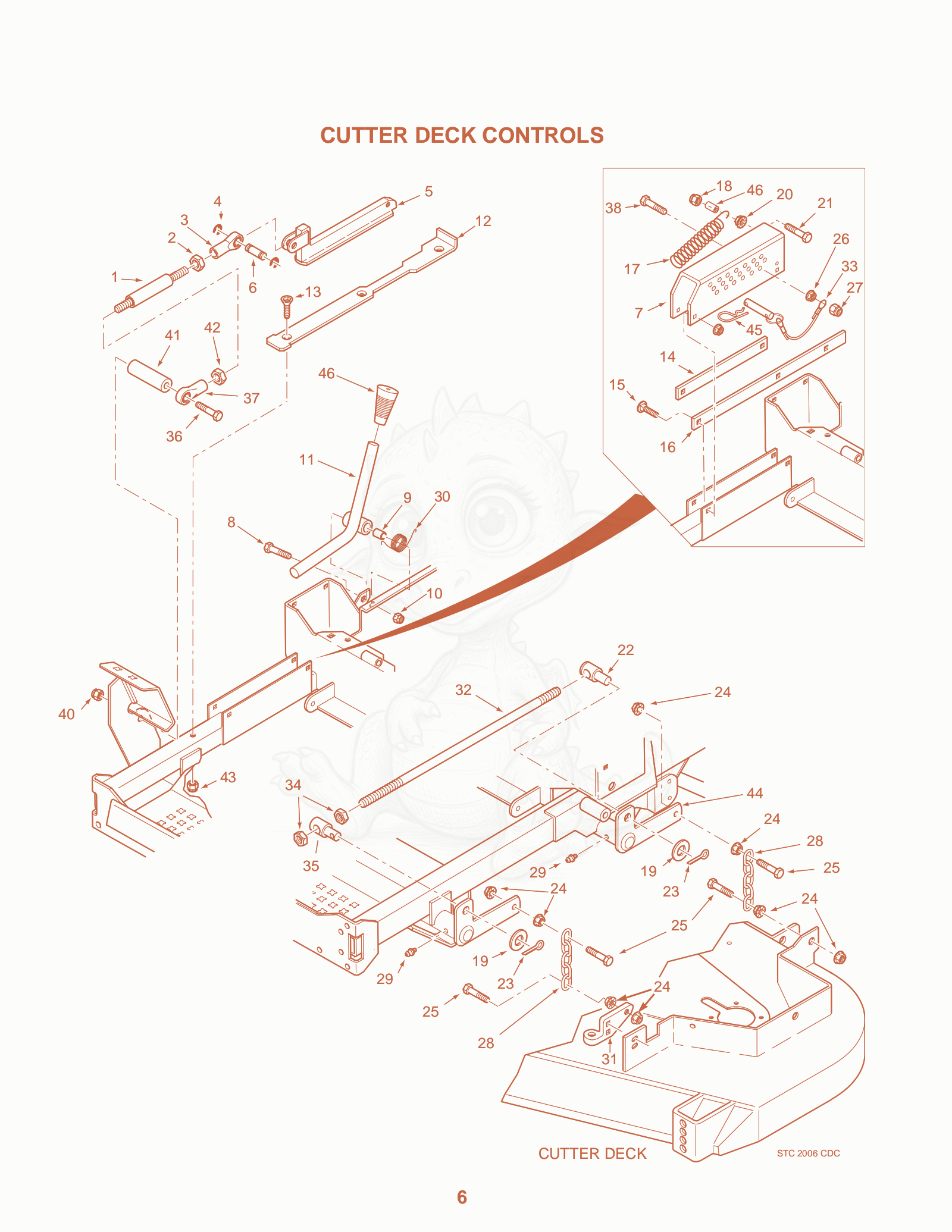

Exploded parts diagram of the Cutter Deck Controls of a Scag SWZ-48V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S482624
    $9.79
    Scag 482624 - LINK, DECK LIFT
  • 2S04020-28
    $3.11
    Scag 04020-28 - NUT, 1/2-20 UNF-2B LH JAM ZINC
  • 3S481766
    $46.78
    Scag 481766 - ROD END, 1/2-20 LH FEMALE
  • 4S04050-10
    $0.39
    Scag 04050-10 - RETAINER RING
  • 5S483062Not stocked
    Slide, Deck Height Adjust
  • 6S43487
    $25.87
    PIN, LIFT - DECK
  • 7S423463
    $89.88
    BRKT, CUTTING HEIGHT ADJUST
  • 8S04001-22
    $0.97
    Scag 04001-22 - BOLT, HEX HEAD 3/8-16 X 2-3/4"
  • 9S43668
    $2.81
    SPACER, DECK LATCH
  • 10S04021-09
    $0.20
    3/8-16 ELASTIC HEX LKNUT
  • 11S461874
    $40.59
    Scag 461874 - DECK LATCH ASSY
  • 12S422346Not stocked
    Slide, Cutting Height
  • 13S04014-03
    $1.47
    Scag 04014-03 - SCREW, CAP 5/16-18 X 3" FHHS
  • 14S422381
    $18.94
    Scag 422381 - GUIDE, SHORT
  • 15S04003-04
    $0.40
    Scag 04003-04 - CARRIAGE BOLT, 5/16-18 X 1"
  • 16S422380
    $31.77
    GUIDE, LONG
  • 17S483177Not stocked
    Spring, Helper
  • 18S04021-05
    $0.26
    Scag 04021-05 - LKNUT, 3/8-16 ELAS STOP
  • 19S04040-09
    $0.28
    Scag 04040-09 - 5/8N WASHER
  • 20S04019-04
    $0.28
    Scag 04019-04 - NUT, 3/8-16 SERR FLG HH ZINC
  • 21S04001-32
    $0.45
    BOLT, HEX HEAD, 3/8-16 X 1-1/4"
  • 22S43678
    $17.42
    SWIVEL JOINT, LH
  • 23S04061-07
    $0.97
    COTTER PIN, 3/16 X 1.0
  • 24S04019-04
    $0.28
    Scag 04019-04 - NUT, 3/8-16 SERR FLG HH ZINC
  • 25S04001-20
    $0.47
    BOLT, HEX HEAD, 3/8-16 X 1-1/2"
  • 26S04019-04
    $0.28
    Scag 04019-04 - NUT, 3/8-16 SERR FLG HH ZINC
  • 27S04021-09
    $0.20
    3/8-16 ELASTIC HEX LKNUT
  • 28S48540Not stocked
    Chain
  • 29S48114-04
    $0.95
    Scag 48114-04 - GREASE FITTING 1/4-28 SELF-TAP
  • 30S483181
    $6.36
    Scag 483181 - SPRING, DECK LATCH
  • 31S461929
    $59.21
    Scag 461929 - LEVER ASSY, DECK LEVEL
  • 32S04004-45
    $25.06
    STUD, 1/2-13 X 20.0 ZINC
  • 33S04067-09
    $26.64
    PIN, RING - 1/2 X 3.06
  • 33S481547
    $15.90
    LANYARD, DECK HEIGHT PIN
  • 34S04020-09
    $0.63
    HEX NUT, 5/8-11
  • 35S43679
    $17.84
    Scag 43679 - SWIVEL JOINT, RH
  • 36S04001-155
    $4.43
    Scag 04001-155 - HH BOLT, 1/2-13 X 5.00 ZINC
  • 37S481765
    $39.63
    Scag 481765 - ROD END, 1/2-20 FEMALE
  • 38S04001-77
    $1.21
    Scag 04001-77 - BOLT, 3/8-16 X 3-1/2" HEX HEAD
  • 39S43572
    $1.56
    SPACER, DECK LIFT SPRING
  • 40S04021-02
    $0.20
    Scag 04021-02 - LKNUT, 1/4-20 CENTER LOCK
  • 41S43630
    $21.36
    SPACER, FOOT PEDAL
  • 42S04020-27
    $4.04
    Scag 04020-27 - NUT, 1/2-20 UNF-2B JAM ZINC
  • 43S04021-10
    $0.10
    Scag 04021-10 - 5/16-18 LOCKNUT ELASTIC TYPE
  • 44S45904
    $101.46
    Scag 45904 - BELLCRANK WELDMENT, LH REAR
  • 44S45905
    $101.46
    Scag 45905 - BELLCRANK WELDMENT, RH REAR
  • 44S04041-14
    $0.53
    Scag 04041-14 - WASHER 1.062X1.5X.048
  • 44S04050-08
    $0.53
    Scag 04050-08 - 1.00 TRUARC RING 5133-98
  • 45S04062-04
    $1.43
    HAIRPIN, COTTER, .177 X 3.25
  • 46S481477
    $4.11
    Scag 481477 - GRIP, HAND CONTROL
