Wildcat SWZ-48V

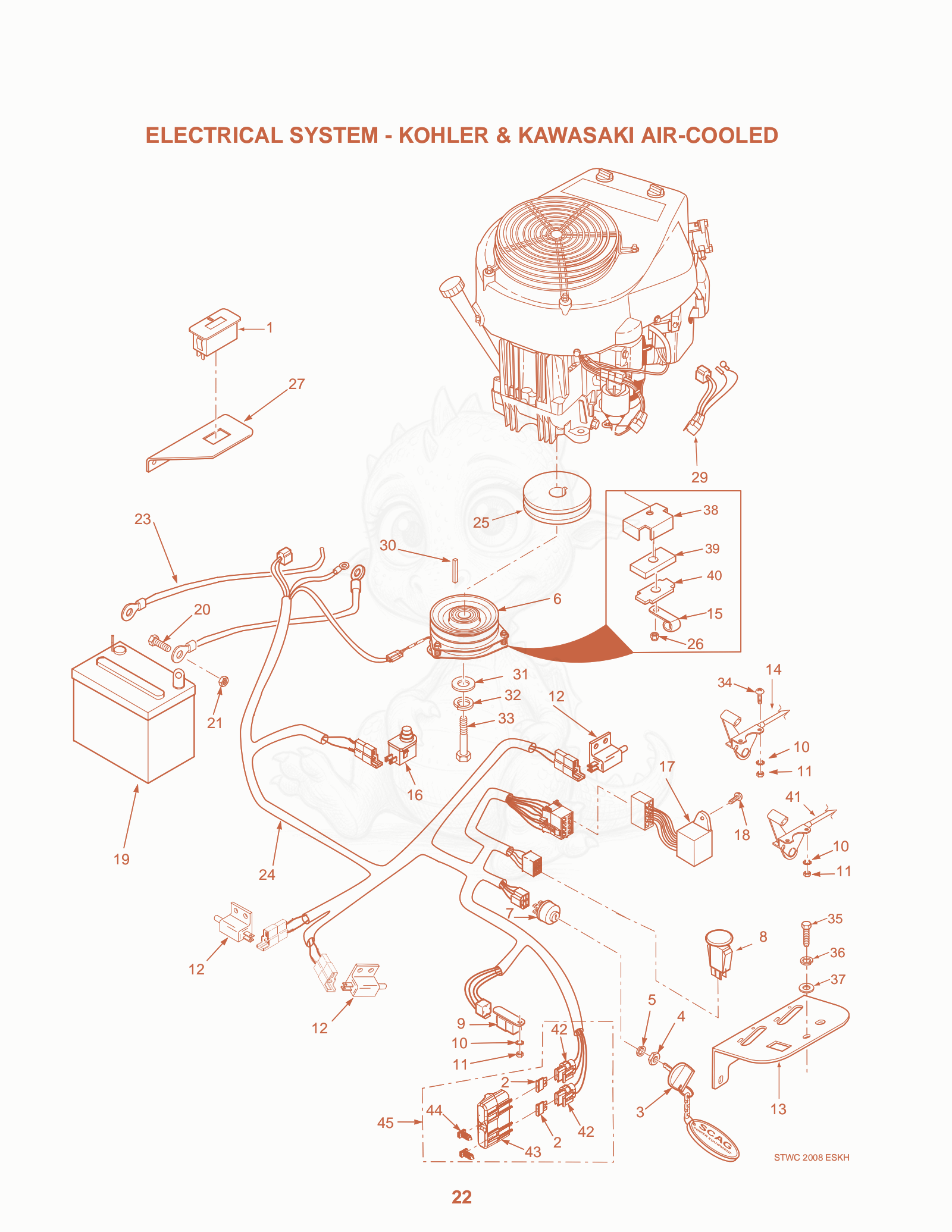

SWZ-48V Electrical System - K Ohler & KA Wasaki Air-cooled Diagram

Exploded parts diagram of the Electrical System - K Ohler & KA Wasaki Air-cooled of a Scag SWZ-48V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S483355Not stocked
    Hourmeter
  • 2S48298
    $3.60
    Scag 48298 - AUTO FUSE 20 AMP
  • 3S483366Not stocked
    Key, Ignition
  • 3S462069
    $7.74
    FOB ASSY W/ KEY
  • 4S48017-04
    $1.43
    Scag 48017-04 - HEX NUT 5/8-32 SPECIAL
  • 5S48017-03
    $0.46
    Scag 48017-03 - LK WASHER INTERNAL 5/8
  • 6S461660
    $439.43
    CLUTCH ASSY W/ TAG, GT3.5
  • 7S48798
    $26.09
    KEYSWITCH (6 POLE) W/HARDWARE
  • 8S483957Not stocked
    Switch, PTO
  • 9S48788
    $27.78
    Scag 48788 - RELAY SWITCH
  • 10S04031-01
    $0.04
    LOCKWASHER, #10 EXT TOOTH
  • 11S04020-01
    $8.39
    NUT,#10-32 UNF ZINC
  • 12S481637
    $9.33
    PLUNGER INTERLOCK SWITCH N/O
  • 13S461768Not stocked
    Panel, Instrument
  • 14S481544
    $26.92
    THROTTLE AND CHOKE CONTROLSUnknown
  • 14S482032Not stocked
    Choke & Throttle Control - Kawasaki (Qty 2)
  • 15S48030-09
    $1.10
    CLAMP,CABLE- .50 ID.
  • 16S481638
    $14.67
    Scag 481638 - SWITCH, INTERLOCK-SEAT
  • 17S483029Not stocked
    Module, Interlock
  • 18S04010-01
    $0.46
    Scag 04010-01 - SCREW, ROUND HEAD #10-32 X 1/2"
  • 20S04001-44
    $0.09
    BOLT, HEX HEAD, 1/4-20 X 1/2"
  • 21S04020-02
    $0.04
    Scag 04020-02 - HEX NUT, 1/4-20
  • 22S48029-15
    $16.56
    BATTERY CABLE 36" BLACK
  • 23S48029-12
    $16.89
    BATTERY CABLE, 36.0 RED
  • 24S483618Not stocked
    Wiring Harness, Main
  • 25S483081
    $99.56
    PULLEY, 5.75 OD - 1.125 BORE
  • 26S04021-10
    $0.10
    Scag 04021-10 - 5/16-18 LOCKNUT ELASTIC TYPE
  • 27S424112
    $10.30
    Scag 424112 - MOUNT, HOURMETER
  • 28S04010-11
    $0.31
    Scag 04010-11 - SCREW, ROUND HEAD #10-32 X 1-1/2"
  • 29S482543
    $29.55
    WIRE HARNESS ADAPTER, STC-KA
  • 30S04063-23
    $1.89
    Scag 04063-23 - KEY, 1/4 X 1/4 X 3-1/4"
  • 31S04041-28
    $2.81
    FLATWASHER, 7/16"
  • 32S04030-05
    $0.09
    LOCKWASHER, 7/16
  • 33S04102-03
    $1.88
    HHCS, 7/16-20 X 2.25 W/ PATCH
  • 34S04010-12
    $0.26
    Scag 04010-12 - SCREW, HEX SLTD WSHR HEAD+C1894"/4"
  • 35S04001-08
    $0.25
    Scag 04001-08 - BOLT, HEX HEAD, 5/16-18 X 3/4"
  • 36S04030-03
    $0.06
    Scag 04030-03 - 5/16LKWHR.586X.317X.078THK(A
  • 37S04040-15
    $0.07
    FLATWASHER, 5/16"
  • 38S423909
    $11.55
    Scag 423909 - RETAINER, CLUTCH PAD
  • 39S481716
    $10.99
    Scag 481716 - RUBBER PAD, CLUTCH STOP
  • 40S422534
    $4.87
    Scag 422534 - PLATE, BACKING-CLUTCH PAD
  • 41S482032Not stocked
    Throttle Control - Kohler & Kawasaki (Qty 1)
  • 42S483629
    $6.94
    FUSE HOLDER, SEALED
  • 43S483571
    $1.61
    SEALED DOUBLE FUSE COVER
  • 44S482588
    $1.71
    Scag 482588 - CLIP, WIRE HARNESS
  • 45S483642
    $42.24
    DOUBLE WIRE ASSY, FUSE CONVERSION
