Wildcat SWZ-48V

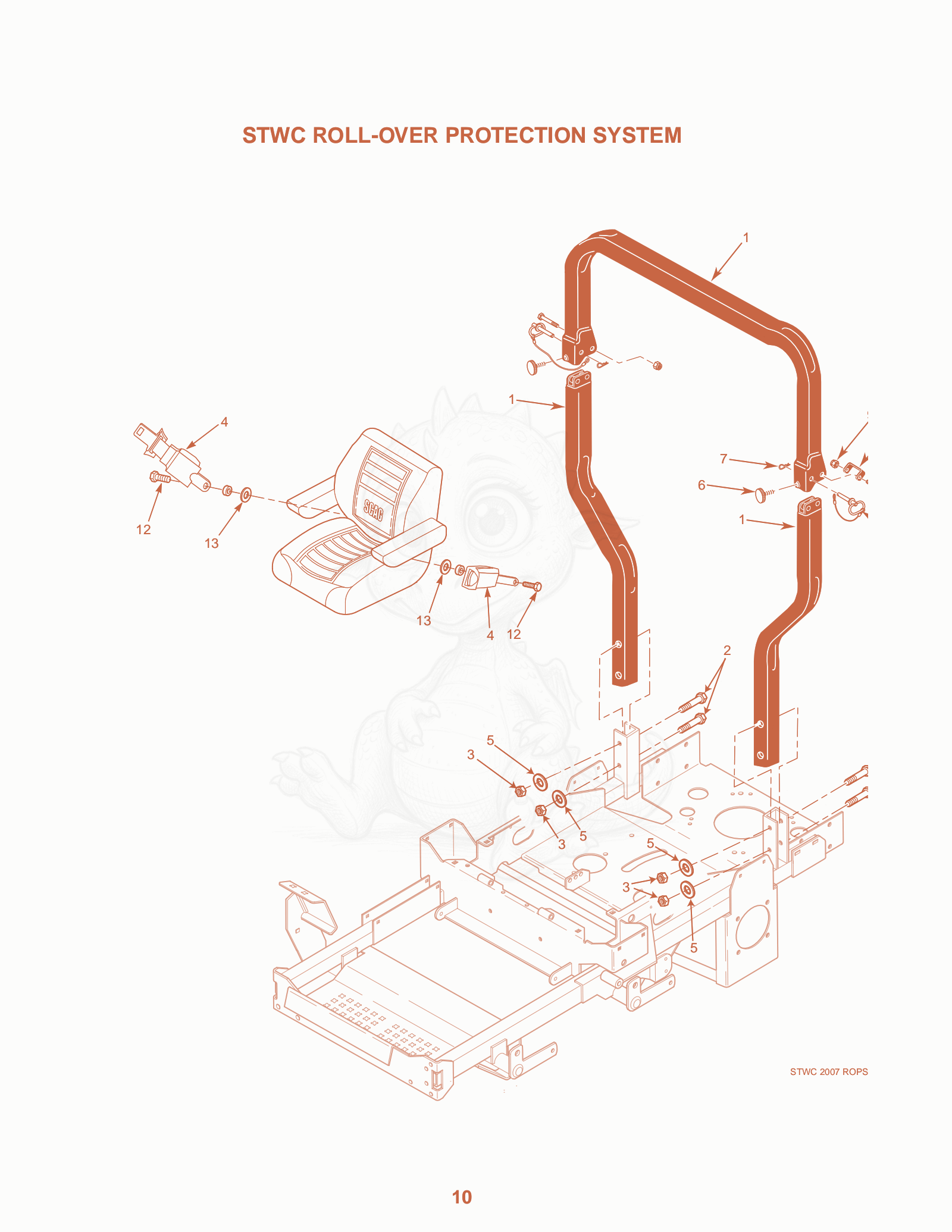

SWZ-48V Stwc Roll-o VER PRO Tection System Diagram

Exploded parts diagram of the Stwc Roll-o VER PRO Tection System of a Scag SWZ-48V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S461956Not stocked
    STWC Foldable ROPS
  • 2S04001-145
    $2.30
    BOLT, HEX HEAD 1/2-13 X 3-1/2"
  • 3S04021-19
    $0.40
    LOCKNUT, HEX 1/2-13 CENTER LOCK
  • 4S483412Not stocked
    Retractable Seat Belt
  • 5S04040-13
    $0.40
    Scag 04040-13 - FLAT WASHER, 1/2(.562 X 1.375 X .109)
  • 6S481625-03
    $5.70
    KNOB W/ STUD, 3/8-16 X 1.25
  • 7S04062-06
    $3.20
    Scag 04062-06 - HAIR PIN COTTER, .12 X 2.5
  • 8S483262
    $26.85
    PIN, ROPS HINGE
  • 9S04021-19
    $0.40
    LOCKNUT, HEX 1/2-13 CENTER LOCK
  • 10S424407
    $31.82
    BRKT, STOP-FOLD ROPS
  • 11S04001-145
    $2.30
    BOLT, HEX HEAD 1/2-13 X 3-1/2"
  • 12S04001-178
    $1.47
    Scag 04001-178 - HHCS, 7/16-20 X 1.00 ZINC
  • 13S04040-11
    $0.40
    FLAT WASHER, 7/16"
