Wildcat SWZ-48V

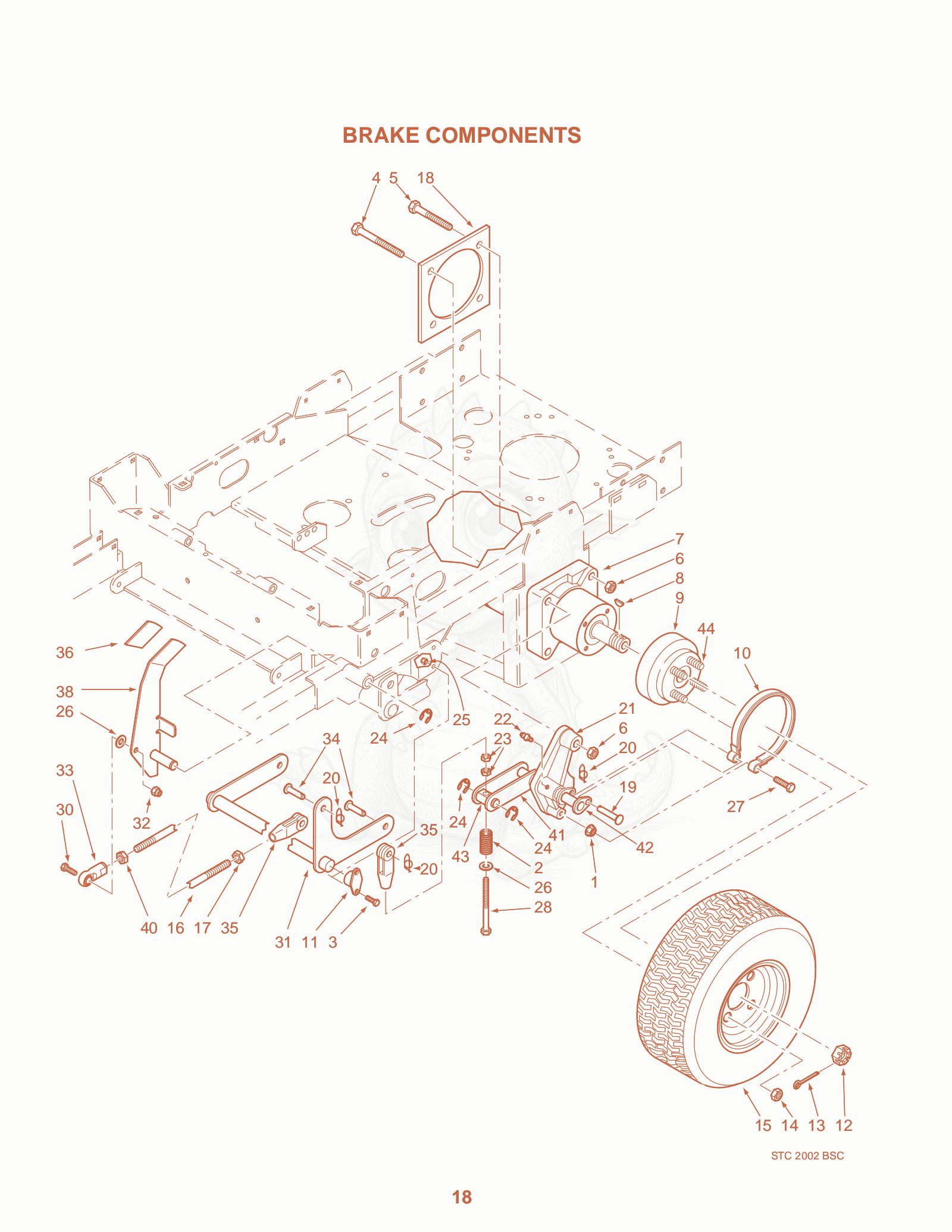

SWZ-48V Brake Components Diagram

Exploded parts diagram of the Brake Components of a Scag SWZ-48V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S04019-06
    $0.70
    Scag 04019-06 - NUT, 1/-13 SERR FLG HH ZINC
  • 2S48807
    $30.88
    SPRING, CUTTER DECK
  • 3S04001-08
    $0.25
    Scag 04001-08 - BOLT, HEX HEAD, 5/16-18 X 3/4"
  • 4S04001-163
    $2.88
    Scag 04001-163 - HH BOLT, 1/2-13 X 3.75 ZINC
  • 5S04001-52
    $1.44
    Scag 04001-52 - BOLT, HEX HEAD, 1/2-13 X 2-1/2
  • 6S04021-19
    $0.40
    LOCKNUT, HEX 1/2-13 CENTER LOCK
  • 7S483190Not stocked
    Wheel Motor, Hydro-Gear
  • 8S04063-25
    $2.78
    KEY, WDRF 5/16 X 1.00 #1008
  • 9S461438Not stocked
    Wheel Hub Assembly
  • 10S483644
    $32.68
    Scag 483644 - BRAKE BAND ASSY
  • 11S482061
    $14.86
    BUSHING, SELF-ALIGN
  • 12S48680
    $16.34
    1.0-20 UNEF HEX CASTLE NUT
  • 13S04061-06
    $0.87
    Scag 04061-06 - PIN, COTTER 9/64 X 1 - 1/2"
  • 14S04028-02
    $1.43
    WHEEL NUT, 1/2-20 X 13/16 HEX
  • 15S482044Not stocked
    (48") Wheel Assembly 23 x 9.5 - 12
  • 15S482413Not stocked
    (52”) Wheel Assembly 23 x 9.5 -12
  • 15S481850
    $371.97
    Scag 481850 - WHEEL ASSY, 24 X 12-12
  • 15S481659Not stocked
    (48") Rim
  • 15S482414Not stocked
    (52”) Rim
  • 15S481851Not stocked
    (61”) Rim w/Stem
  • 15S482194Not stocked
    (48"/52”) Tire 23 x 9.5 - 12
  • 15S481852
    $280.42
    Scag 481852 - TIRE, 24 X 12-12
  • 16S04004-46
    $14.52
    Scag 04004-46 - STUD, 3/8-24 X 8.125 ZINC
  • 17S04020-14
    $0.15
    Scag 04020-14 - NUT, 3/8-24
  • 18S423279
    $25.36
    Scag 423279 - PLATE, MOTOR BACKING
  • 19S04064-16
    $1.89
    Scag 04064-16 - CLEVIS PIN, 3/8 X 1.93
  • 20S04069-01
    $1.11
    PIN, RUE COTTER - 3/8 DIA
  • 21S451970Not stocked
    Brake Linkage LH
  • 21S451971Not stocked
    Brake Linkage RH
  • 22S48114-04
    $0.95
    Scag 48114-04 - GREASE FITTING 1/4-28 SELF-TAP
  • 23S04020-25
    $0.47
    Scag 04020-25 - NUT, 3/8-24 UNF-2B JAM ZINC
  • 24S04050-01
    $0.29
    Scag 04050-01 - .625 TRUARC R. RING 5133-62
  • 25S04021-10
    $0.10
    Scag 04021-10 - 5/16-18 LOCKNUT ELASTIC TYPE
  • 26S04041-07
    $0.47
    3/8 FWSHR 15/16X25/64X12GA
  • 27S04001-187
    $2.31
    HHCS, 1/2-13 X 2.50 GRD 8
  • 28S04001-166Not stocked
    Bolt, Hex Hd. 3/8-24 x 3-3/4”
  • 29S04061-02
    $0.26
    3/32 X .75 COTTER PIN W/EXT PRG Z
  • 30S04001-20
    $0.47
    BOLT, HEX HEAD, 3/8-16 X 1-1/2"
  • 31S451463
    $74.27
    Scag 451463 - BRAKE SHAFT WELDMENT
  • 32S04021-09
    $0.20
    3/8-16 ELASTIC HEX LKNUT
  • 33S48544
    $25.50
    Scag 48544 - ROD END, LH
  • 34S04064-02
    $1.21
    Scag 04064-02 - CLEV PIN 3/8DIA X 1-1/16L ZC
  • 35S48343-04
    $16.27
    Scag 48343-04 - CLEVIS, 3/8-24 STEEL
  • 36S482102Not stocked
    Grip, Brake Lever
  • 37S04019-04
    $0.28
    Scag 04019-04 - NUT, 3/8-16 SERR FLG HH ZINC
  • 38S461509Not stocked
    Brake Lever (Incl. item 36)
  • 39S04001-22
    $0.97
    Scag 04001-22 - BOLT, HEX HEAD 3/8-16 X 2-3/4"
  • 40S04020-17
    $1.93
    NUT,3/8-24 UNF-2B LH THD
  • 41S422483Not stocked
    Lever, Brake
  • 42S45974Not stocked
    Shaft Weldment, Pivot
  • 43S43495Not stocked
    Pin, Pivot
  • 44S04008-01
    $3.36
    Scag 04008-01 - 1/2-20 SERRATED BOLT ZINC
