Wildcat SWZ-48V

SWZ-48V Hydraulic Pump Assembl Y Diagram

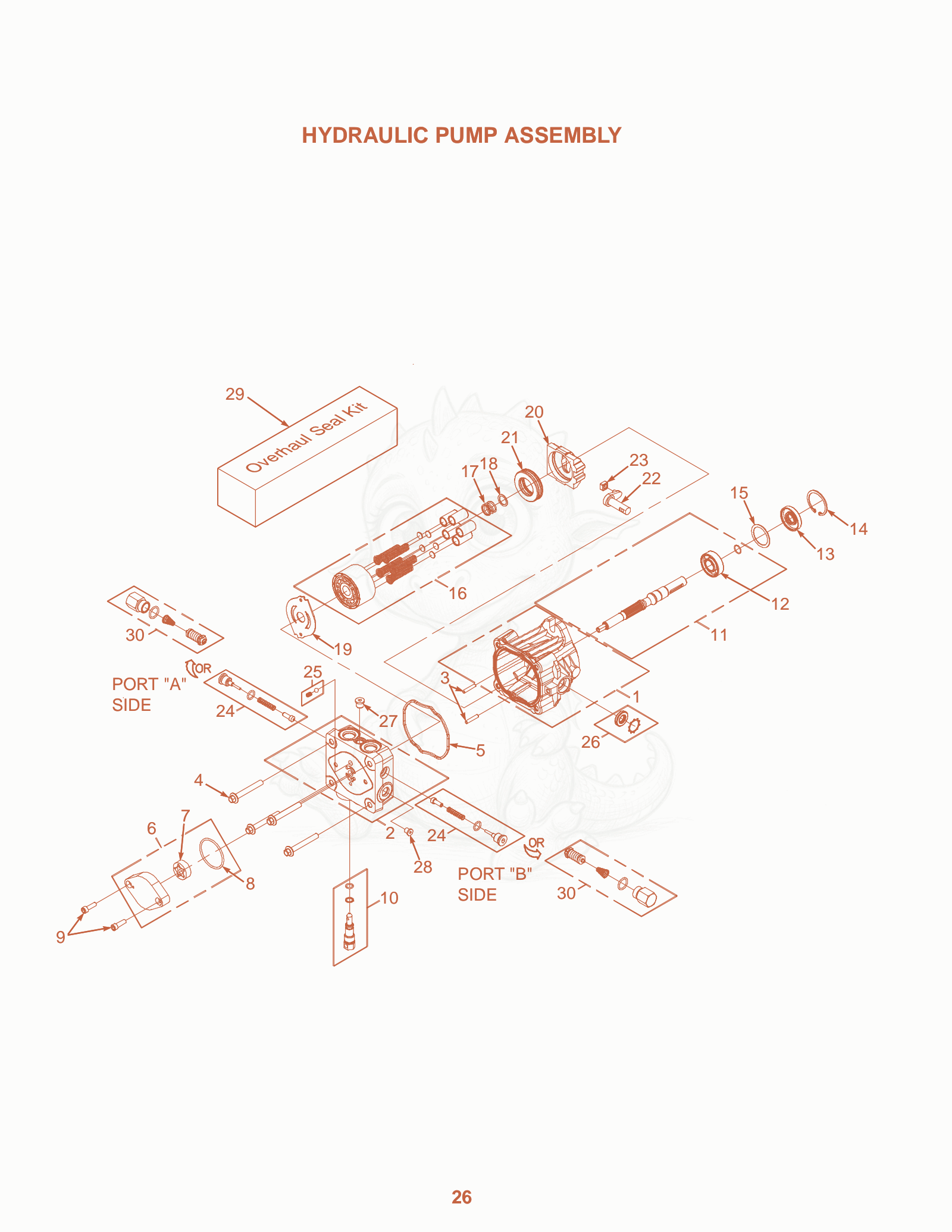

Exploded parts diagram of the Hydraulic Pump Assembl Y of a Scag SWZ-48V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S70516Not stocked
    Housing Kit
  • 2S70573Not stocked
    End Cap Kit
  • 3S50641Not stocked
    Straight Headless Pin
  • 4S50969Not stocked
    Hex Flng. Bolt, M8-1.25 x 60mm
  • 5S51232Not stocked
    Housing O-Ring
  • 6S2513027Not stocked
    Charge Pump Kit
  • 7S50273Not stocked
    Gerotor Assembly
  • 8S9004101-1340Not stocked
    O-Ring
  • 9S50095Not stocked
    Socket Head Screw, M6 x 1.0-20mm
  • 10S2513030Not stocked
    Bypass Valve Kit
  • 11S70521Not stocked
    Pumpshaft Kit
  • 12S50315Not stocked
    Ball Bearing, 17 x 40 x 12mm
  • 13S51161Not stocked
    Lip Seal
  • 14S50329Not stocked
    Retaining Ring
  • 15S50951Not stocked
    Spacer
  • 16S70331Not stocked
    Cylinder Block Kit
  • 17S2003014Not stocked
    Block Spring
  • 18S2003017Not stocked
    Block Thrust Washer
  • 19S51444Not stocked
    Valve Plate
  • 20S2003087Not stocked
    Swash Plate
  • 21S50551Not stocked
    Ball Thrust Bearing
  • 22S2003005Not stocked
    Trunnion Arm
  • 23S2000015Not stocked
    Slot Guide
  • 24S2510062Not stocked
    Check Valve Kit (.024” Orifice) port “A” on Left Hand Pump, port “B” on Right Hand Pump
  • 25S70403Not stocked
    Charge Relief Kit
  • 26S2513043Not stocked
    Trunnion Seal with Retainer
  • 27S9005110-4400Not stocked
    Straight Thread Plug
  • 28S50408Not stocked
    Straight Headless Pin
  • 29S70525Not stocked
    Overhaul Seal Kit
  • 30S70743Not stocked
    System Check Relief Kit, port “B” on Left Hand Pump, port “A” on Right Hand Pump be purchased locally. All bolts Grade 5 plated, all other fasteners zinc plated. 27
