Wildcat SWZ-48V

SWZ-48V Sheet MET AL Components Diagram

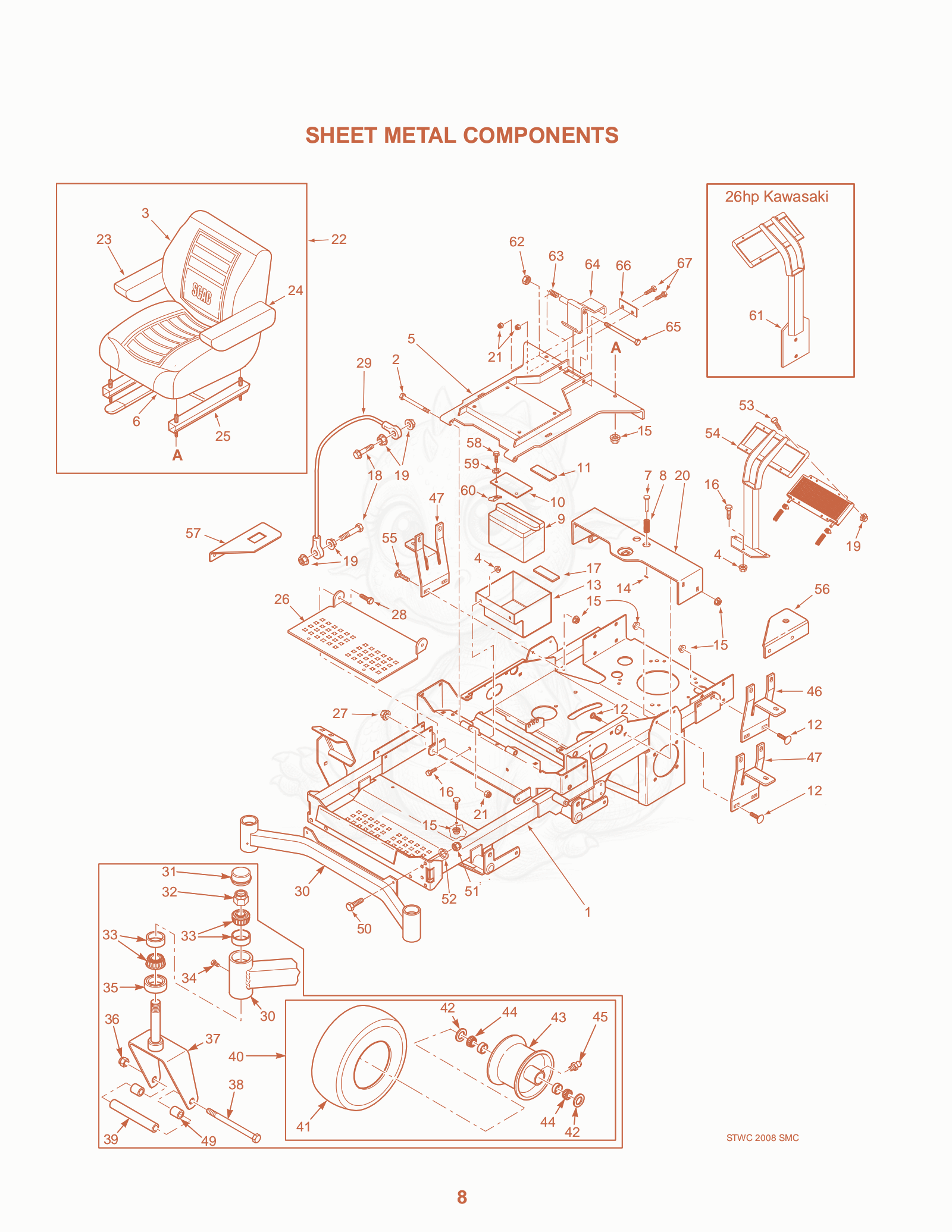

Exploded parts diagram of the Sheet MET AL Components of a Scag SWZ-48V, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1S461918
$1,127.51
Scag 461918 - MAINFRAME ASSY W/ DECALS, STC
2S04001-73
$0.95
BOLT, HEX HEAD 5/16-18 X 3-3/4"
3S482938
$268.66
BACK COVER, STC SR SEAT
4S04019-04
$0.28
Scag 04019-04 - NUT, 3/8-16 SERR FLG HH ZINC
5S461989
$225.09
Scag 461989 - SEAT MTG BASE ASSY W/ DECALS
6S482939
$135.19
CUSHION COVER, STC SR SEAT
7S43462
$26.41
Scag 43462 - PIN RETAINER, SPRING
8S481389
$3.30
Scag 481389 - SPRING, SEAT
10S423571
$8.77
Scag 423571 - CLAMP, BATTERY
11S482553
$1.88
Scag 482553 - PAD, RUBBER - BAT HOLD-DOWN
12S04003-12
$0.36
Scag 04003-12 - CARRIAGE BOLT, 5/16-18 X 3/4"
13S423556
$86.13
Scag 423556 - BATTERY BOX
14S04060-01
$0.30
Scag 04060-01 - 5-32X3/4 PIN SLTD SPRG ZC
15S04019-03
$0.15
Scag 04019-03 - NUT, 5/16-18 SERR FLG HH ZINC
16S04001-19
$0.39
Scag 04001-19 - BOLT, HEX HEAD, 3/8-16 X 1"
17S482552
$3.92
Scag 482552 - PAD, RUBBER - BAT SUPT
18S04001-59
$0.31
Scag 04001-59 - 1/4-20 X 1-1/4 HH BOLT GD5
19S04019-02
$0.10
Scag 04019-02 - NUT, 1/4-20 SERR FLG HH ZINC
20S451896
$93.39
Scag 451896 - SEAT BRACE WELDMENT
21S04021-10
$0.10
Scag 04021-10 - 5/16-18 LOCKNUT ELASTIC TYPE
22S483386Not stocked
Seat Assembly w/Adj. Rails & Seat Belt
23S482616
$66.92
Scag 482616 - ARMREST COVER, STT SEATUnknown
23S482618Not stocked
Armrest, RH
24S482616
$66.92
Scag 482616 - ARMREST COVER, STT SEAT
24S482617
$100.55
Scag 482617 - ARMREST, LH - STT SEAT ** SUPERSEDED TO 486003 **
25S482937
$175.90
Scag 482937 - SEAT ADJ TRACK SET, STC SR
26S423557
$56.02
Scag 423557 - FOOTPLATE
27S04021-09
$0.20
3/8-16 ELASTIC HEX LKNUT
28S04001-19
$0.39
Scag 04001-19 - BOLT, HEX HEAD, 3/8-16 X 1"
29S48566
$16.17
Scag 48566 - CABLE, SEAT STOP
30S451827Not stocked
Weldment, Caster Support (61V)
30S451826Not stocked
Weldment, Caster Support (52V)
31S481559Not stocked
Cap, Grease
32S04021-20
$4.43
Scag 04021-20 - NUT, 1.0-14 UNS JAM-ELAS STOP
33S48668
$22.94
BEARING W/RACE
34S482028-01
$5.82
Scag 482028-01 - PLUG, 1/4-28 SELF TAP
35S481025
$4.36
SEAL,2.00 OD X 1.625 BORE
36S04021-07
$0.45
1/2-13 ELASTIC TYP HX LKNUT
37S451658
$108.04
Scag 451658 - YOKE WELDMENT, CASTER WHEEL
38S04001-167
$5.47
HH BOLT, 1/2-13 X 9.50 ZINC
39S43583
$13.50
Scag 43583 - SLEEVE, CASTER WHEEL
40S9278
$169.00
Scag 9278 - Flat Free Front Caster Tire & Wheel Assy-Fits Wildcats & 61" 72" Tigers&Cheetahs
41S482619
$165.10
Scag 482619 - TIRE, 13 X 6.50-6 4 PLY SMOOTH
42S482622
$9.20
Scag 482622 - SEAL, 1.125 X 1.785 X .469
43S482620
$230.18
RIM ASSY, PAINTED
44S482621
$20.02
Scag 482621 - BEARING, .75 ID TAPERED
45S48114-10
$3.60
GREASE ZERK, 1/4-28 X 1.0
46S423575
$32.67
Scag 423575 - MTG BRKT, HYD TANK
47S423764
$32.67
MNT, FUEL TANK - REAR
48S482633
$235.17
SEAT PAN
49S43584
$2.71
SPACER, CASTER WHEEL
50S04001-28
$0.69
Scag 04001-28 - BOLT, HEX HEAD, 7/16-14 X 1-1/4"
51S04021-11
$0.26
Scag 04021-11 - HEX NUT, ELASTIC STOP, 7/16-14
52S04030-05
$0.09
LOCKWASHER, 7/16
53S04001-06
$0.20
Scag 04001-06 - BOLT, HEX HEAD, 1/4-20 X 5/8"
54S451580
$122.17
Scag 451580 - SUPPORT WELDMENT, COOLER MTG
55S04003-04
$0.40
Scag 04003-04 - CARRIAGE BOLT, 5/16-18 X 1"
56S423912
$23.90
Scag 423912 - MOUNT, FUEL VALVE
57S424112
$10.30
Scag 424112 - MOUNT, HOURMETER
58S04001-32
$0.45
BOLT, HEX HEAD, 3/8-16 X 1-1/4"
59S04030-04
$0.06
LOCKWASHE3/8"
60S04110-03
$2.09
U-NUT, 3/8-16
61S451840
$167.87
Scag 451840 - SUPPORT WELDMENT, COOLER MTG
62S04021-05
$0.26
Scag 04021-05 - LKNUT, 3/8-16 ELAS STOP
63S483371
$7.50
Scag 483371 - SPRING, SEAT LATCH
64S451897
$37.85
Scag 451897 STC Seat Latch Weldment
65S04001-100
$5.73
Scag 04001-100 - BOLT, HEX HEAD, 3/8-16 X 6"
66S424584Not stocked
Seat Stop
67S04001-09
$0.40
HHCS, 5/16-18 X 1.00 ZINC
