Wildcat SWZ-48V

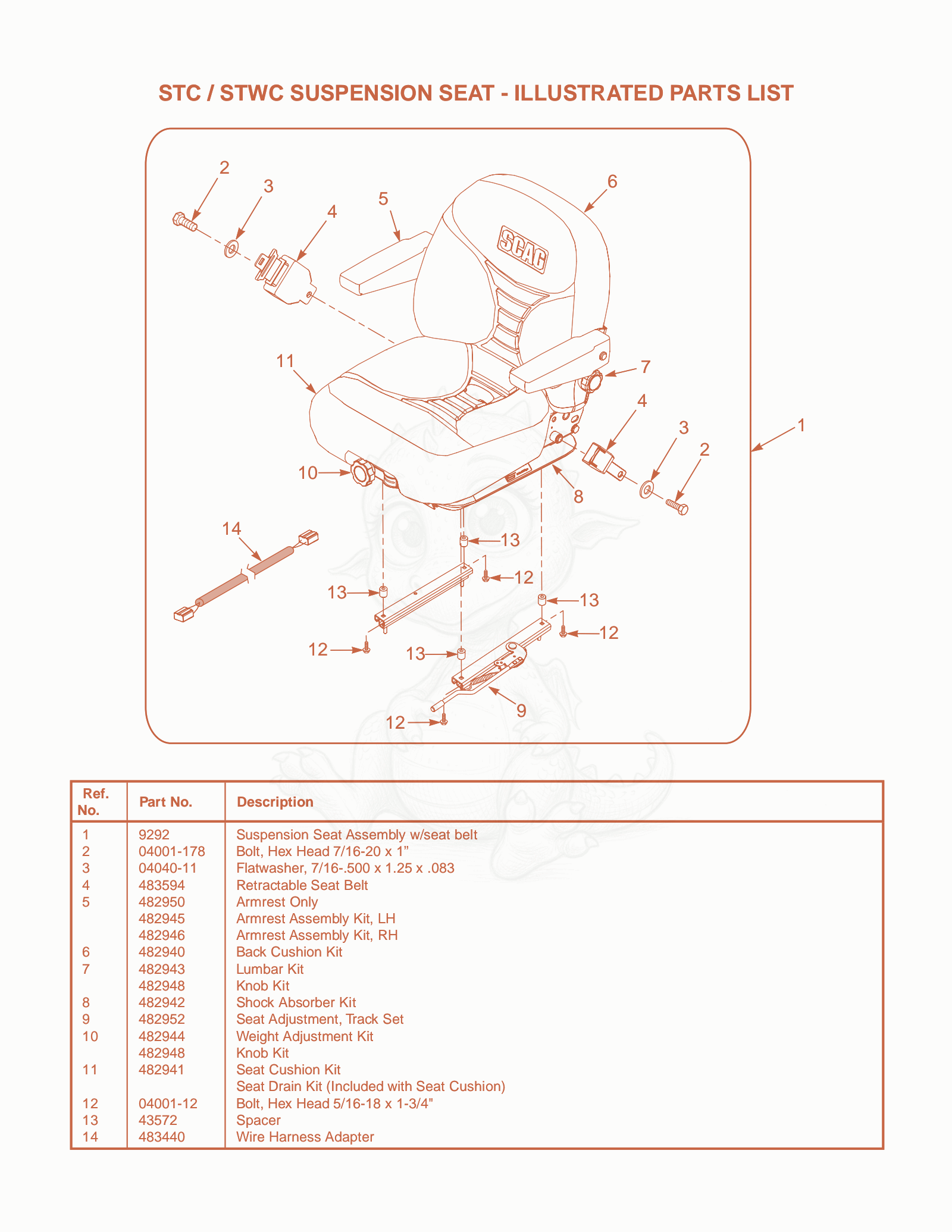

SWZ-48V STC / Stwc Suspension Seat - Diagram

Exploded parts diagram of the STC / Stwc Suspension Seat - of a Scag SWZ-48V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S9292Not stocked
    Suspension Seat Assembly w/seat belt
  • 2S04001-178
    $1.47
    Scag 04001-178 - HHCS, 7/16-20 X 1.00 ZINC
  • 3S04040-11
    $0.40
    FLAT WASHER, 7/16"
  • 4S483594
    $193.62
    Scag 483594 - SEATBELT, RETRACTABLE W/HARDWARE
  • 5S482950
    $47.09
    Scag 482950 - ARMREST, MOLDED - STT-S SEAT
  • 5S482945
    $255.27
    Scag 482945 - ARMREST ASSY KIT, LH STT-S
  • 5S482946
    $275.67
    Scag 482946 - ARMREST ASSY KIT RH STT-S
  • 6S482940
    $366.11
    BACK CUSHION KIT, STT-S SEAT
  • 7S482943
    $195.79
    LUMBAR KIT,STT-S SEAT
  • 7S482948
    $36.94
    KNOB KIT, STT-S SEAT
  • 8S482942
    $175.46
    SHOCK ABSORBER KIT, STT-S
  • 9S482952
    $224.99
    SLIDE KIT, STT-S SEAT
  • 10S482944
    $199.85
    Scag 482944 - WEIGHT ADJUST KIT, STT-S SEAT
  • 10S482948
    $36.94
    KNOB KIT, STT-S SEAT
  • 11S482941
    $371.69
    Scag 482941 - SEAT CUSHION KIT, STT-S SEAT
  • 12S04001-12
    $0.46
    BOLT, HEX HEAD, 5/16-18 X 1.75
  • 13S43572
    $1.56
    SPACER, DECK LIFT SPRING
  • 14S483440
    $36.64
    Scag 483440 - WIRE HARNESS, SUSP SEAT
