Cheetah SCZ-35CV

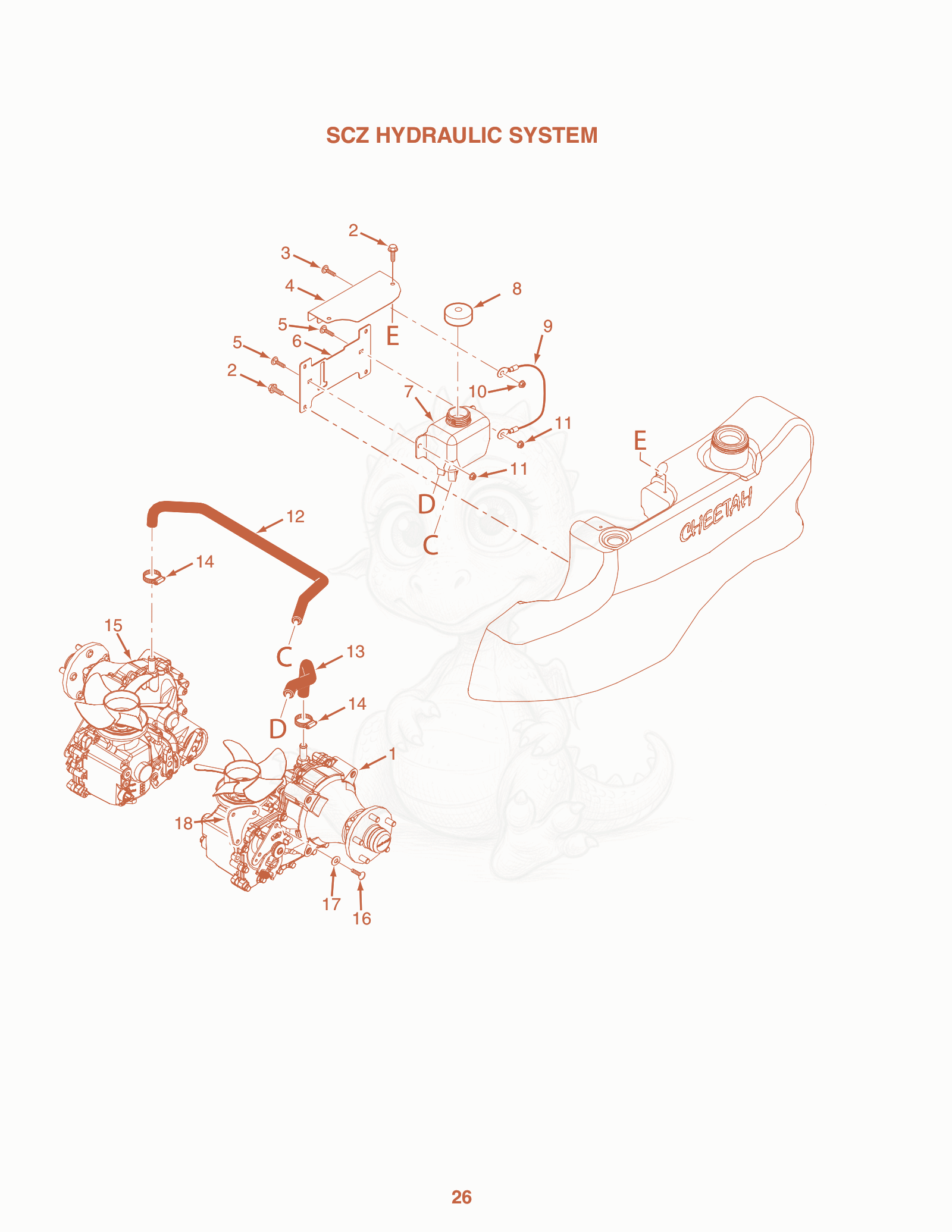

SCZ-35CV SCZ Hydraulic System Diagram

Exploded parts diagram of the SCZ Hydraulic System of a Scag SCZ-35CV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S483797
    $1,840.56
    Scag 483797 - TRANSAXLE, LH
  • 2S04017-04
    $0.46
    Scag 04017-04 - CPSCR,1/4-20X.50 SERR FLG HH Z
  • 3S04003-02
    $0.31
    CARRIAGE BOLT, 1/4-20 X 3/4"
  • 4S425390Not stocked
    Cover, Oil Reservoir
  • 5S04003-12
    $0.36
    Scag 04003-12 - CARRIAGE BOLT, 5/16-18 X 3/4"
  • 6S425421
    $20.28
    Scag 425421 - PLATE, HYDRO TANK MTG
  • 7S462907
    $50.45
    Scag 462907 - OIL RESERVOIR ASSY, SCZ
  • 8S483514
    $21.79
    Scag 483514 - CAP, OIL RESERVOIR
  • 9S484196
    $14.27
    LANYARD, OIL RESERVOIR COVER
  • 10S04021-08
    $0.07
    Scag 04021-08 - 1/4-20 ELASTIC HEX LKNUT ZINC
  • 11S04117-01
    $0.26
    Scag 04117-01 - LKNUT, 5/16-18 FLG HH ELAS STOP
  • 12S484161
    $91.36
    HOSE, RH HYDRAULIC
  • 13S484160
    $35.89
    Scag 484160 - HOSE, LH HYDRAULIC
  • 14S48136-16
    $1.51
    CLAMP, 1.00 MAX DIA
  • 15S483798
    $1,840.56
    TRANSAXLE, RH
  • 16S04001-18
    $0.35
    Scag 04001-18 - BOLT, HEX HEAD, 3/8-16 X 3/4
  • 17S04030-04
    $0.06
    LOCKWASHE3/8"
  • 18S452131
    $21.49
    BRKT WLMT, TRANSAXLE
