Cheetah SCZ-35CV

SCZ-35CV A Diagram

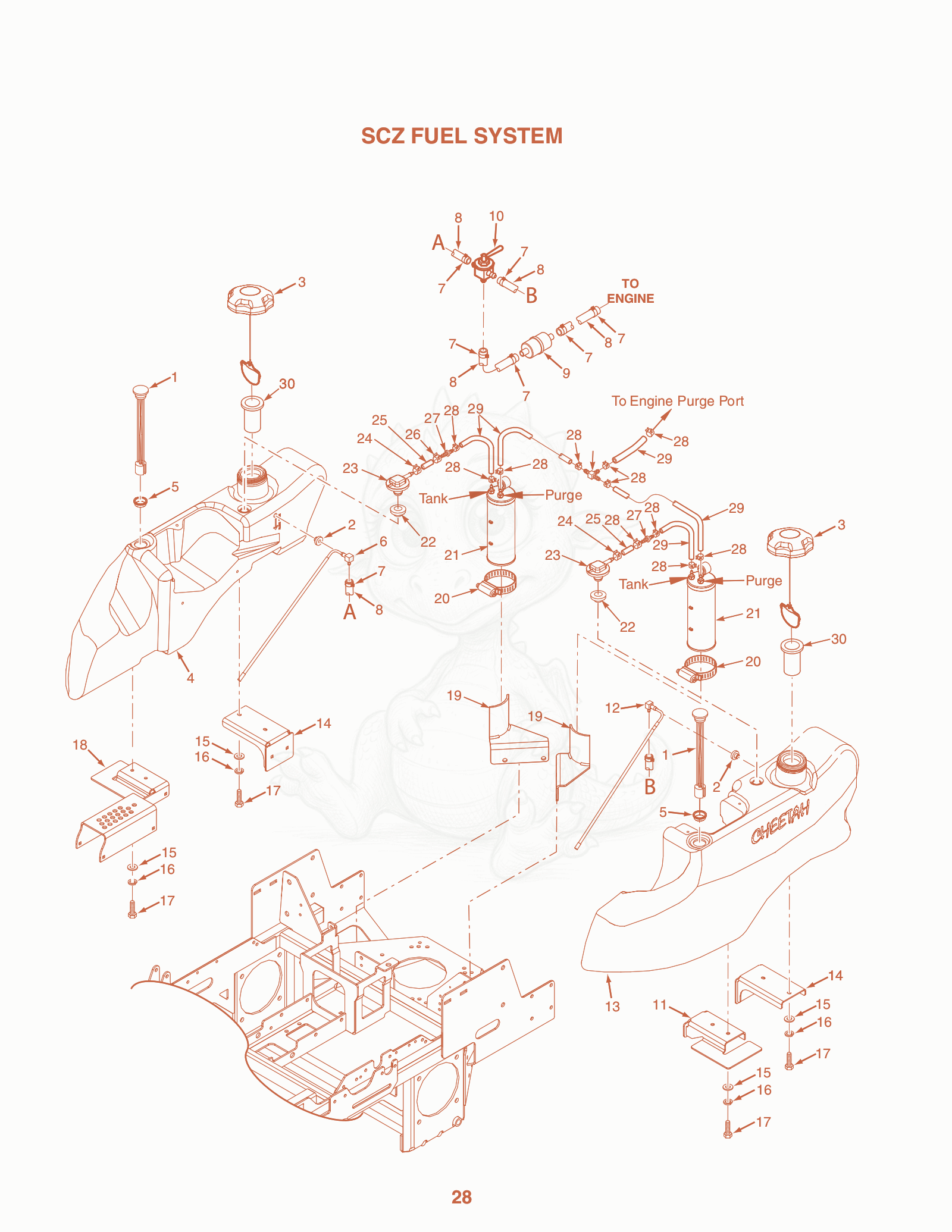

Exploded parts diagram of the A of a Scag SCZ-35CV, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1S484323
$93.38
FUEL GAUGE ASSY, 12.0
2S482571
$11.70
BUSHING, .56 DIA VITON
3S484286
$51.58
FUEL CAP, TETHERED
3S484297
$61.68
Scag 484297 - FUEL CAP W/ TETHER CARB
4S463074
$573.50
Scag 463074 - FUEL TANK ASSY RH SCZ
5S484242
$20.86
SEAL, FUEL GAUGE
6S484553
$29.78
Scag 484553 - FUEL TUBE ASSY, RH
7S48059-01
$0.57
Scag 48059-01 - FUEL HOSE CLAMP DET#1
8S483617
$0.46
HOSE, NON-PERM FUEL 1/4" (PER INCH)
10S482212
$41.94
Scag 482212 - VALVE, FUEL SHUT-OFF
11S425573
$37.19
Scag 425573 - MTG BRKT, FUEL TANK - FRONT
12S484552
$29.78
FUEL TUBE ASSY, LH
13S463072
$546.05
FUEL TANK ASSY, LH SCZ
14S425350
$44.06
Scag 425350 - MTG BRKT, FUEL TANK - REAR
15S04040-15
$0.07
FLATWASHER, 5/16"
16S04030-03
$0.06
Scag 04030-03 - 5/16LKWHR.586X.317X.078THK(A
17S04001-08
$0.25
Scag 04001-08 - BOLT, HEX HEAD, 5/16-18 X 3/4"
18S425574
$97.71
Scag 425574 - ADJ BRKT, UPPER CUTTING HEIGHT
19S452176
$33.81
CANISTER MTG WLMT
20S48136-17
$6.93
CLAMP, 3.50 MAX DIA
21S484342
$97.78
Scag 484342 - CARBON CANISTER, 550 CC
21S484366
$2.77
DUST FILTER, CANISTER
22S484285Not stocked
Grommet, Viton
23S484333
$13.85
REMOTE VENT W/ NO VALVE
24S48059-02
$0.32
Scag 48059-02 - CLAMP, FUEL HOSE - 7/32 ID
25S484347
$0.35
HOSE, 1/4" VAPOR RECOVERY
26S48059-02
$0.32
Scag 48059-02 - CLAMP, FUEL HOSE - 7/32 ID
27S484343-01
$25.22
Scag 484343-01 - FITTING, MENDER 1/4X3/16 W/.020 HOLE
28S48059-05
$3.98
Scag 48059-05 - CLAMP, VAPOR RECOVERY 3/16 HOSE
29S484345
$0.19
Scag 484345 - HOSE, 3/16" VAPOR RECOVERY
30S484279-01
$3.98
Scag 484279-01 - TUBE, FUEL TANK INSERT - 4"
