Cheetah SCZ-35CV

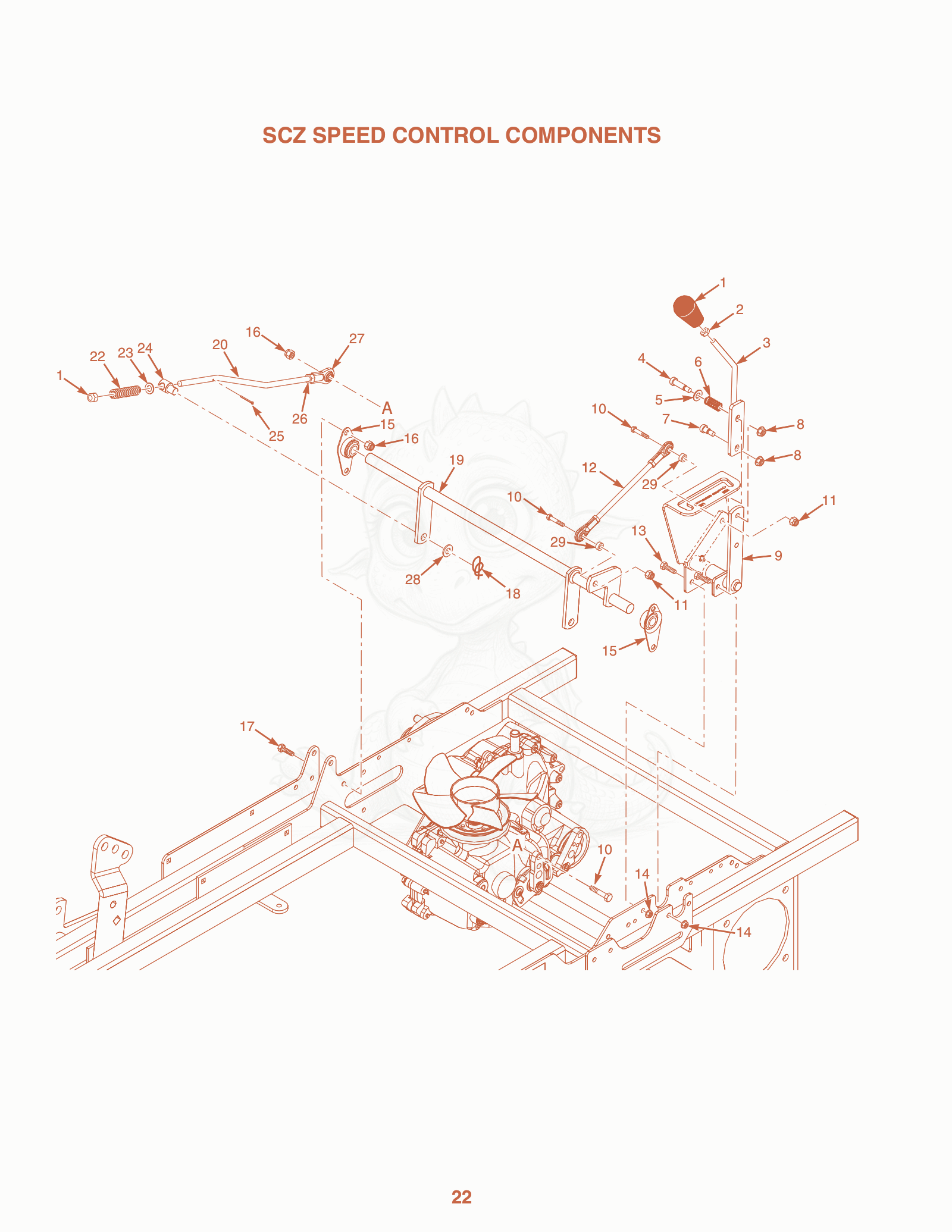

SCZ-35CV SCZ Speed Control Components Diagram

Exploded parts diagram of the SCZ Speed Control Components of a Scag SCZ-35CV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S484093Not stocked
    Knob, Soft Touch
  • 2S04020-12
    $0.07
    JAM NUT, 3/8-16
  • 3S452222
    $28.86
    Scag 452222 - LEVER WELDMENT, SPD CONTROL
  • 4S04009-11
    $2.73
    BOLT, 3/8 X 1.00 SHOULDER
  • 5S04040-05
    $0.07
    Scag 04040-05 - FLATWASHER, 3/8(.406 X .812 X .065)
  • 6S483601
    $2.42
    Scag 483601 - SPRING, SPEED CONTROL SLIDE
  • 7S04009-14
    $5.59
    Scag 04009-14 - BOLT, 3/8 X .375 SHOULDER
  • 8S04019-03
    $0.15
    Scag 04019-03 - NUT, 5/16-18 SERR FLG HH ZINC
  • 9S452409
    $114.98
    CNTL WLMT, SPEED RANGE ADJ
  • 9S48114-04
    $0.95
    Scag 48114-04 - GREASE FITTING 1/4-28 SELF-TAP
  • 10S04001-20
    $0.47
    BOLT, HEX HEAD, 3/8-16 X 1-1/2"
  • 11S04021-09
    $0.20
    3/8-16 ELASTIC HEX LKNUT
  • 12S484187
    $45.52
    Scag 484187 - LINKAGE ASSY, UPPER SPD CNTL, SCZ
  • 12S483339
    $18.93
    Scag 483339 - ROD END, 3/8-24 RH FEMALE
  • 12S04020-25
    $0.47
    Scag 04020-25 - NUT, 3/8-24 UNF-2B JAM ZINC
  • 12S483340
    $18.93
    ROD END, 3/8-24 LH FEMALE
  • 12S04020-26
    $1.58
    Scag 04020-26 - NUT, 3/8-24 UNF-2B LH JAM ZINC
  • 13S04001-09
    $0.40
    HHCS, 5/16-18 X 1.00 ZINC
  • 14S04117-01
    $0.26
    Scag 04117-01 - LKNUT, 5/16-18 FLG HH ELAS STOP
  • 15S484149
    $12.50
    BEARING, SELF ALIGN
  • 16S04117-01
    $0.26
    Scag 04117-01 - LKNUT, 5/16-18 FLG HH ELAS STOP
  • 17S04001-08
    $0.25
    Scag 04001-08 - BOLT, HEX HEAD, 5/16-18 X 3/4"
  • 18S04069-02
    $4.71
    PIN, RUE COTTER - 1/2 DIA
  • 19S452138
    $118.16
    Scag 452138 - BELLCRANK WELDMENT, SPEED CONTROL
  • 20S485318
    $7.98
    Scag 485318 - ROD, BRAKE LINKAGE
  • 21S04021-18
    $1.44
    LOCK NUT 3/8-24 ELASTIC STOP GR 8
  • 22S484175
    $30.71
    Scag 484175 - SPRING, SPEED CONTROL ADJUSTMENT
  • 23S04042-04
    $6.78
    FLATWASHER, 3/8-.406 X .734 X .063
  • 24S485317
    $13.11
    Scag 485317 - BUSHING, PIVOT SLIDE
  • 25S04061-01
    $0.39
    Scag 04061-01 - COTTER PIN, 3/32 X 1
  • 26S04020-14
    $0.15
    Scag 04020-14 - NUT, 3/8-24
  • 27S484177
    $20.75
    ROD END, 3/8-24 THD- 5/16 BORE
  • 28S04043-04
    $0.70
    Scag 04043-04 - FLATWASHER, 3/8"
  • 29S43063
    $7.49
    Scag 43063 - SPACER
