Cheetah SCZ-35CV

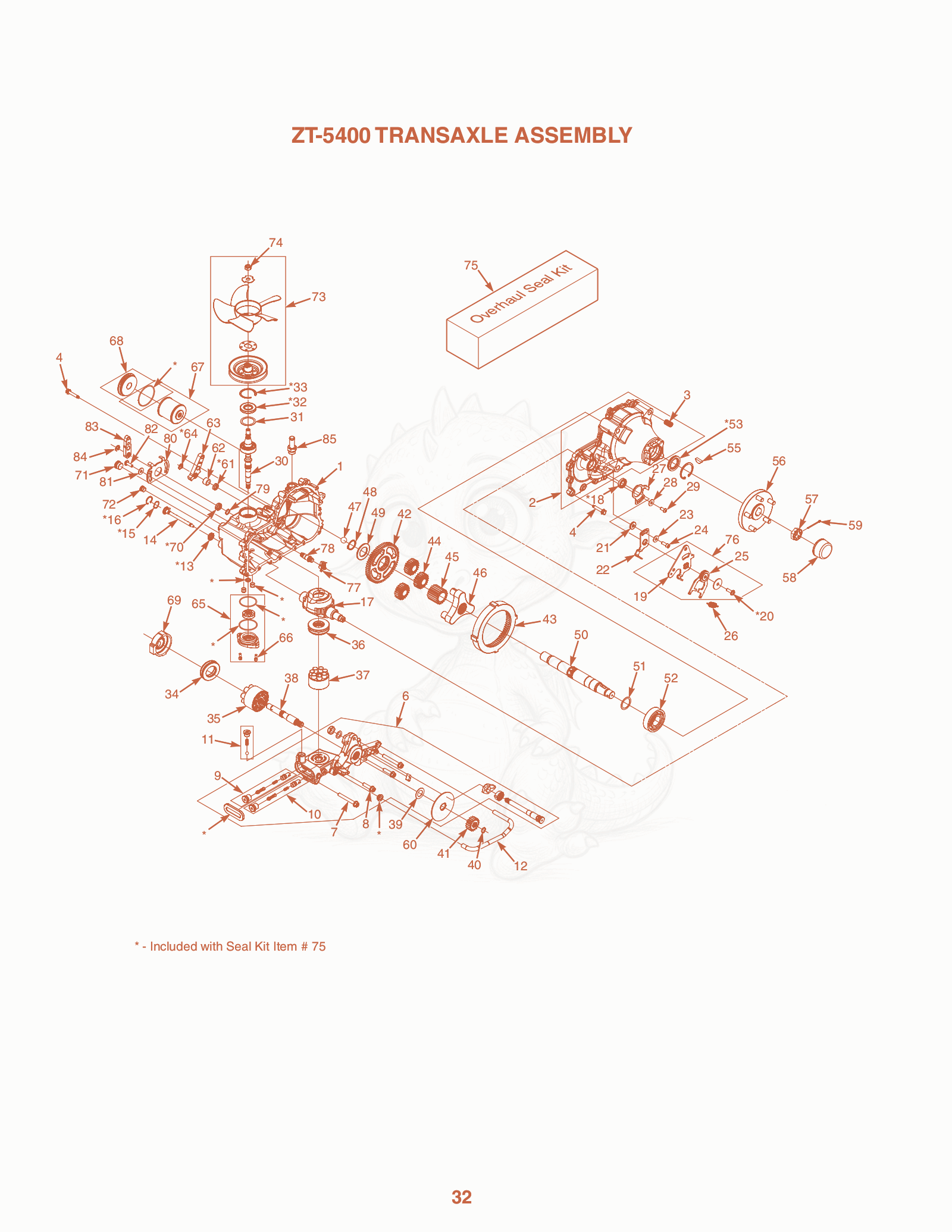

SCZ-35CV ZT-5400 Transaxle Assembly Diagram

Exploded parts diagram of the ZT-5400 Transaxle Assembly of a Scag SCZ-35CV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1SHG71946Not stocked
    Kit, Housing Main, LH
  • 1SHG71947Not stocked
    Kit, Housing Main, RH
  • 2SHG71948Not stocked
    Kit, Housing Side, LH
  • 2SHG71948Not stocked
    Kit, Housing Side, RH
  • 3SHG52973Not stocked
    Insert, 1/2-13 x 1-1/2” UNC
  • 4SHG52974Not stocked
    Screw, Hex Flange 5/16-18 x 1-1/2”
  • 5SHG50928Not stocked
    Tube, Sealant
  • 6SHG71995Not stocked
    Kit, Center Section, LH
  • 6SHG71996Not stocked
    Kit, Center Section, RH
  • 7SHG52977Not stocked
    Bolt, Hex Flange 3/8-16 x 3”
  • 8SHG52137Not stocked
    Screw, Hex Flange Head 3/8-16 x 1-1/2”
  • 9SHG71952Not stocked
    Kit, Shock Valve
  • 10SHG71952Not stocked
    Kit, Shock Valve
  • 11SHG71999Not stocked
    Kit, Charge Relief
  • 12SHG52984Not stocked
    Tube, Filter, LH
  • 12SHG52983Not stocked
    Tube, Filter, RH
  • 13SHG53197Not stocked
    Seal, Lip 12x 24 x 5 TC
  • 14SHG71940Not stocked
    Kit, Bypass Actuator
  • 15SHG53321Not stocked
    Spring, Wave
  • 16SHG53322Not stocked
    Ring, Retaining, HO-100
  • 17SHG52972Not stocked
    Swash Plate, 16cc. Machined
  • 18SHG52989Not stocked
    Seal, Lip 22 x 32 x 7
  • 19SHG53222Not stocked
    Arm, Control, LH
  • 19SHG53221Not stocked
    Arm, Control, RH
  • 20SHG51812Not stocked
    TWHCS, 5/16-18 x 1” (Patch)
  • 21SHG52527Not stocked
    Spacer, .320 x 1.005 x .179
  • 22SHG51946Not stocked
    Arm, Neutral, LH
  • 22SHG51945Not stocked
    Arm, Neutral, RH
  • 23SHG44130Not stocked
    Washer, .34 x .88 x .06
  • 24SHG51616Not stocked
    SHCS, 5/16-24 x .875 (Patch)
  • 25SHG52433Not stocked
    Assembly, RTN Uni-Directional (CCW) LH
  • 25SHG52434Not stocked
    Assembly, RTN Uni-Directional (CW) RH
  • 26SHG51605Not stocked
    Spring, Extension, RTN - 44lbs
  • 27SHG53190Not stocked
    Plate, Stop, LH
  • 27SHG53189Not stocked
    Plate, Stop, RH
  • 28SHG44130Not stocked
    Washer, .34 x .88 x .06
  • 29SHG53519Not stocked
    HBHCS, 5/16-18 x 3/4”
  • 30SHG71941Not stocked
    Kit, Input Shaft
  • 31SHG51279Not stocked
    Spacer
  • 32SHG51280Not stocked
    Seal, Lip 25 x 52 x 7 TC
  • 33SHG52650Not stocked
    Ring, Retaining Internal
  • 34SHG53341Not stocked
    Bearing, Thrust 42 x 68 x 16
  • 35SHG70082Not stocked
    Kit, Cylinder Block - 21cc.
  • 36SHG52991Not stocked
    Bearing, Thrust 35 x 70 x 22
  • 37SHG70735Not stocked
    Kit, Cylinder Block - 16cc.
  • 38SHG52992Not stocked
    Shaft, Motor
  • 39SHG52993Not stocked
    Washer, .89 x 1.50 x .04
  • 40SHG44145Not stocked
    Ring, Retaining
  • 41SHG52994Not stocked
    Gear, 19T
  • 42SHG52996Not stocked
    Gear, 65T
  • 43SHG52998Not stocked
    Gear, Ring 68T
  • 44SHG52999Not stocked
    Gear, Planet 23T
  • 45SHG53000Not stocked
    Gear, Sun 22T 33
  • 46SHG53001Not stocked
    Carrier
  • 47SHG53002Not stocked
    Ball, Thrust .75
  • 48SHG53003Not stocked
    Ring, Retaining 1-1/4”
  • 49SHG53004Not stocked
    Spacer, Thrust, Axle
  • 50SHG53005Not stocked
    Shaft, Axle
  • 51SHG53006Not stocked
    Washer, 1.40 x 1.75 x .05
  • 52SHG53007Not stocked
    Bearing, Ball 35 x 80 x 21
  • 53SHG53008Not stocked
    Seal, Lip 1.375 x 2.062 x .250
  • 54SHG50859Not stocked
    Ring, Retaining Internal
  • 55SHG51796Not stocked
    Key, Shaft, Axle
  • 56SHG72039
    $193.75
    HUB, 5-BOLT
  • 57SHG51821
    $22.50
    NUT, HEX 1-20 SLOTTED
  • 58SHG53724
    $7.71
    CAP, AXLE
  • 59SHG51822Not stocked
    Pin, Cotter 9/64 x 2”
  • 60SHG53012Not stocked
    Rotor, Brake
  • 61SHG53015Not stocked
    Seal, .56 x .88 x .19
  • 62SHG53356Not stocked
    Spacer, .57 x .86 x .53
  • 63SHG53018
    $17.27
    Scag HG53018 - HANDLE, ACTUATING BRAKE
  • 64SHG53019Not stocked
    Ring, Retaining
  • 65SHG71942
    $211.22
    Scag HG71942 - KIT, CHARGE COVERUnknown
  • 65S2510Not stocked
    Screw, 1/4-20 x .625
  • 67SHG71943
    $39.62
    KIT, FILTER
  • 68SHG71944
    $48.15
    Scag HG71944 - KIT, FILTER PLUG
  • 69SHG53026Not stocked
    Plate, Motor Swash
  • 69S0127Not stocked
    Seal, 15 x 24 x 7
  • 69S8700Not stocked
    Plug, 7/8-14
  • 69S5600Not stocked
    Plug, 9/16-18
  • 73SHG71906
    $211.22
    Scag HG71906 - KIT, PULLEY / FAN
  • 74SHG44133Not stocked
    Nut, Hex 1/2-20 w/Patch
  • 75SHG71945Not stocked
    Seal Kit
  • 76SHG72002Not stocked
    Kit, RTN Bi-Directional LH
  • 76SHG72001Not stocked
    Kit, RTN Bi-Directional RH
  • 77SHG53028Not stocked
    Cam, 2-Speed
  • 78SHG53029Not stocked
    Shaft, 2-Speed, Bevel
  • 79SHG53030Not stocked
    Ring, Retaining External .59”
  • 80SHG53034Not stocked
    Arm, Lock Down 2-Speed
  • 81SHG44130Not stocked
    Washer, .34 x .88 x .06
  • 82SHG53519Not stocked
    HBHCS, 5/16-18 x 3/4”
  • 83SHG53193
    $14.78
    Scag HG53193 - HANDLE, ACTUATING 2-SPEED
  • 84SHG53019Not stocked
    Ring, Retaining External .375”
  • 85SHG53037Not stocked
    Fitting, 7/8-14 SAE, .625 Beaded
