Cheetah SCZ-35CV

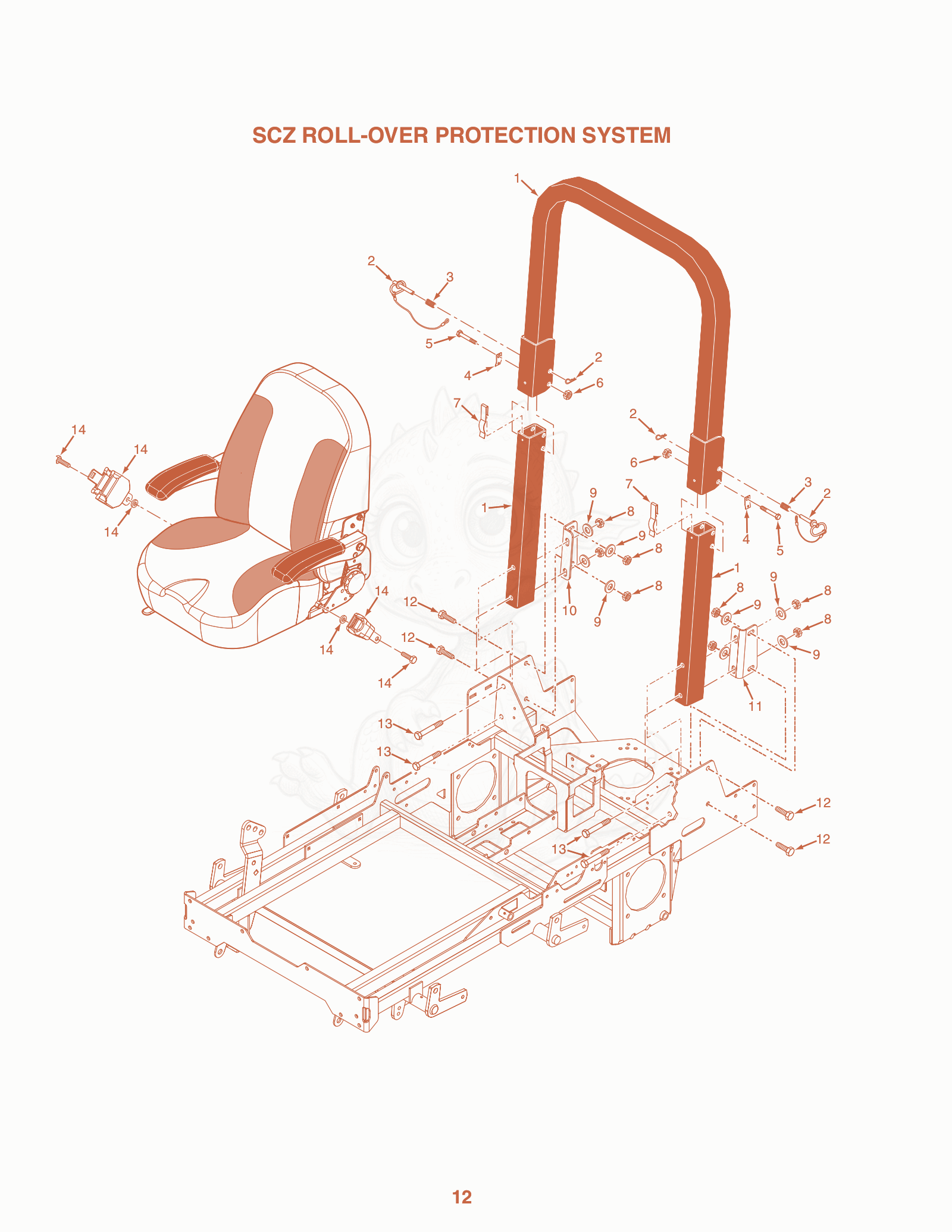

SCZ-35CV SCZ Roll-over Protection System Diagram

Exploded parts diagram of the SCZ Roll-over Protection System of a Scag SCZ-35CV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S462246
    $662.92
    Scag 462246 - ROPS ASSY, FOLDABLE - SCZ
  • 2S484168
    $26.85
    PIN ASSY, ROPS HINGE
  • 3S484170
    $1.06
    Scag 484170 - SPRING, ROPS
  • 4S484169
    $3.32
    CLIP, ROPS
  • 5S04001-90
    $2.81
    Scag 04001-90 - BOLT, HEX HEAD, 1/2-13 X 3-1/4
  • 6S04021-07
    $0.45
    1/2-13 ELASTIC TYP HX LKNUT
  • 7S484167
    $4.30
    SPRING, ROPS ANTI-RATTLE
  • 8S04021-19
    $0.40
    LOCKNUT, HEX 1/2-13 CENTER LOCK
  • 9S04040-13
    $0.40
    Scag 04040-13 - FLAT WASHER, 1/2(.562 X 1.375 X .109)
  • 10S425341
    $20.66
    Scag 425341 - ROPS MNT, RH REAR
  • 11S425340
    $20.66
    Scag 425340 - ROPS MNT, LH REAR
  • 12S04001-70
    $1.29
    HH BOLT, 1/2-13 X 1.25 ZINC
  • 13S04001-194
    $4.81
    Scag 04001-194 - HHCS, 1/2-13 X 4.25 ZINC
  • 14S484262
    $179.76
    Scag 484262 SCZ Seat Belt Kit, Retractable
