Cheetah SCZ-35CV

SCZ-35CV SCZ Drive System Components Diagram

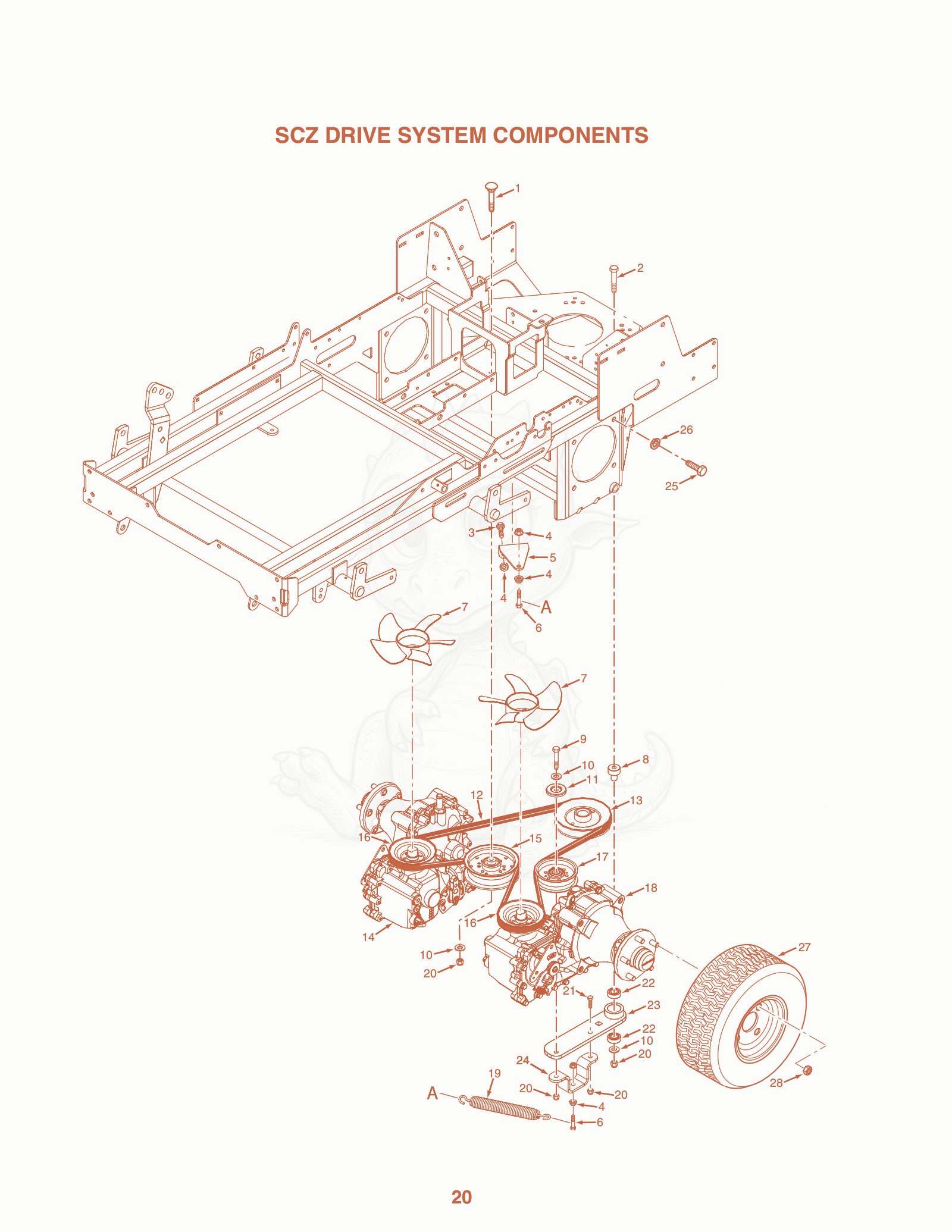

Exploded parts diagram of the SCZ Drive System Components of a Scag SCZ-35CV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1S04003-21
    $2.10
    Scag 04003-21 - CARRIAGE BOLT, 3/8-16 X 2-1/2
  • 2S04001-54
    $0.96
    BOLT, HEX HEAD, 3/8-16X3"
  • 3S04001-19
    $0.39
    Scag 04001-19 - BOLT, HEX HEAD, 3/8-16 X 1"
  • 4S04019-04
    $0.28
    Scag 04019-04 - NUT, 3/8-16 SERR FLG HH ZINC
  • 5S425385
    $13.34
    Scag 425385 - MTG BRKT, SPRING - IDLER ARM
  • 6S04001-136
    $0.46
    Scag 04001-136 - BOLT, HEX HEAD 3/8-16 X 1-1/2"
  • 7SHG71906
    $211.22
    Scag HG71906 - KIT, PULLEY / FAN
  • 8S43504
    $27.20
    Scag 43504 - PIVOT, IDLER - LONG
  • 9S04001-22
    $0.97
    Scag 04001-22 - BOLT, HEX HEAD 3/8-16 X 2-3/4"
  • 10S04043-04
    $0.70
    Scag 04043-04 - FLATWASHER, 3/8"
  • 11S424367
    $1.95
    DUST SHIELD
  • 12S483165
    $65.86
    BELT, STT PUMP DRIVE -10 MPH
  • 13S484098
    $84.76
    Scag 484098 - PULLEY, 5.80 DIA - 1.125 BORE
  • 14S483798
    $1,840.56
    TRANSAXLE, RH
  • 15S483215Not stocked
    Pulley, 5” Dia. Idler
  • 16SHG71906
    $211.22
    Scag HG71906 - KIT, PULLEY / FAN
  • 17S484128
    $21.74
    PULLEY, 4.00" IDLER
  • 18S483797
    $1,840.56
    Scag 483797 - TRANSAXLE, LH
  • 19S484202
    $97.68
    SPRING, IDLER ARM
  • 20S04021-09
    $0.20
    3/8-16 ELASTIC HEX LKNUT
  • 21S04001-32
    $0.45
    BOLT, HEX HEAD, 3/8-16 X 1-1/4"
  • 22S48224
    $12.51
    BALL BEARINGS-NEUTRAL RET.
  • 23S462259
    $74.46
    Scag 462259 - IDLER ARM ASSY, TRANSAXLE DR
  • 24S425386
    $18.30
    MTG BRKT, IDLER
  • 25S04001-70
    $1.29
    HH BOLT, 1/2-13 X 1.25 ZINC
  • 26S04030-06
    $0.15
    LOCKWASHER, 1/2"
  • 27S484024Not stocked
    Wheel Assembly, 24 x 12-12 4-Ply (5-Hole)
  • 27S484023
    $202.50
    RIM W/ VALVE STEM, 5-HOLE
  • 27S481852
    $280.42
    Scag 481852 - TIRE, 24 X 12-12
  • 28S04028-02
    $1.43
    WHEEL NUT, 1/2-20 X 13/16 HEX
